Home /Products/PU Extruded Products/Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness

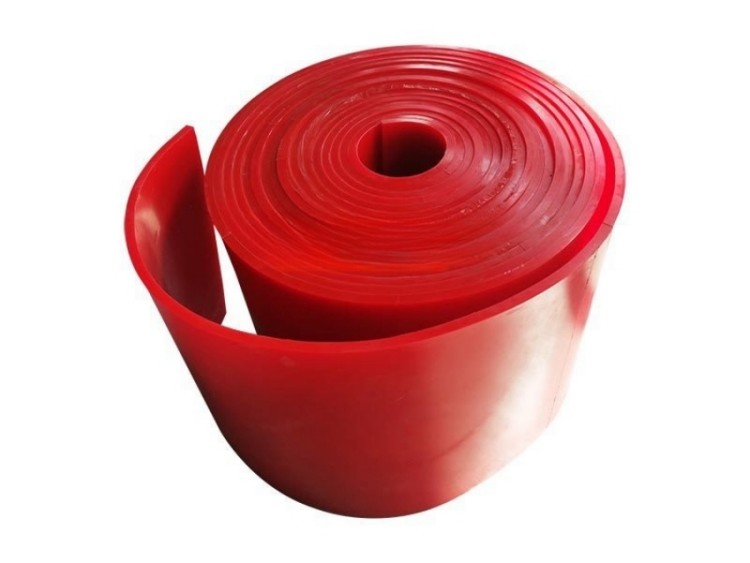

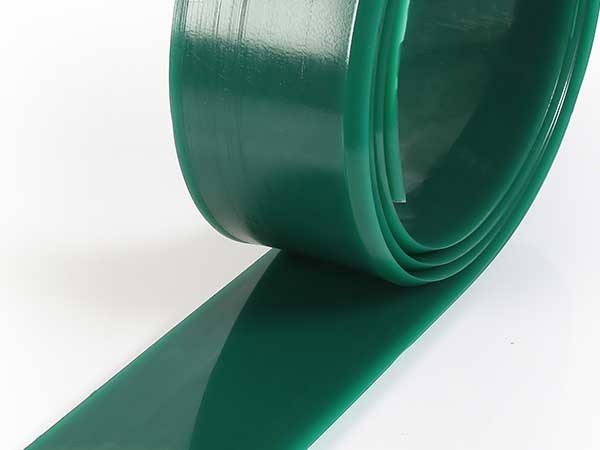

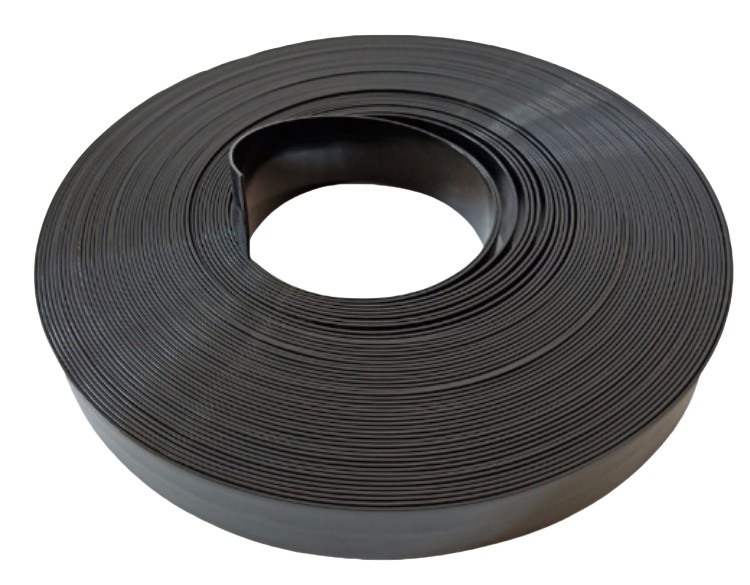

Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness

10rolls
MOQ
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Features Gallery Product Description Chat Now
Features
Specifications
Material: Polyurethane
Hs Cord: 3926909090
Color: Red, Yellow, Green, Orange, White Or Customized
Application: Stabilise And Guide Curved Belts
Hardness: 60 A-85 A
Original: China
Applicable Temperature: -30℃~80℃
Packing: Plastic Reel And Carton
Highlight:

Conveyor Belt Skirting Wear Resisting

,

Pu Conveyor Belt Skirting

,

Polyurethane Conveyor Belt Skirting
Basic Infomation
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm
Payment & Shipping Terms
Packaging Details: plastic reel and carton
Delivery Time: 7working days
Payment Terms: L/C, D/A, D/P, T/T
Product Description
Polyurethane PU Conveyor Belt Skirting - Wear Resisting 65-95 A Hardness
Key Attributes
Material:
Polyurethane
Color Options:
Red, Yellow, Green, Orange, White or Customized
Application:
Stabilize and Guide Curved Belts
Hardness:
60 A-85 A
Temperature Range:
-30℃~80℃
Packing:
Plastic Reel and Carton
Product Overview
Our polyurethane conveyor belt skirting serves as an effective sealing strip for conveyor systems, designed to optimize material transfer and discharge points. These skirting strips help direct materials onto the belt while significantly reducing leakage, dust emissions, and belt damage.
Key Features
  • Exceptional abrasion resistance for extended service life
  • Superior chemical and tear resistance
  • Enhanced impact and cut resistance
  • 3-5 times longer lifespan compared to rubber skirting
  • Effective side skirt solution to prevent material spillage
Industrial Applications
Our urethane conveyor skirting is widely implemented in mining operations, foundries, aggregate processing, and various light-duty industrial applications where reliable material containment is essential.
Technical Specifications
Parameter Specification
Material Composition 100% Polyurethane (PU)-TDI-Polyester
Thickness Range 2-30mm (Common: 10,12,16mm)
Width Range 10-600mm (Common: 75,100,125,150,200,250,300mm)
Roll Length 15 Mtr/roll or 30Mtr/roll
Hardness (Shore A) 65 shore A~95 shore A
Available Colors Black, Green, Blue, White, Red etc.
Density 1.25 g/cm³
Tensile Strength 40 MPa
Elongation at Break 660%
Abrasion Loss 40 mm³ @10N
Temperature Range -30℃~70℃
Edge Options Straight edge or bevel edge (45° or 35° available)
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness 0
