Conveyor System PU Extruded Products Polyurethane Skirting For Conveyor Belt

10rolls
MOQ
Conveyor System PU Extruded Products Polyurethane Skirting For Conveyor Belt
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Polyurethane
Hs Cord: 3926909090
Color: Red, Yellow, Green, Orange, White Or Customized
Application: Stabilise And Guide Curved Belts
Hardness: 60 A-85 A
Original: China
Applicable Temperature: -30℃~80℃
Packing: Plastic Reel And Carton
Highlight:

Conveyor System PU Extruded Products

,

Conveyor Belt PU Skirting

,

Polyurethane Skirting For Conveyor Belt

Basic Infomation
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm
Payment & Shipping Terms
Packaging Details: plastic reel and carton
Delivery Time: 7working days
Payment Terms: L/C, D/A, D/P, T/T
Product Description

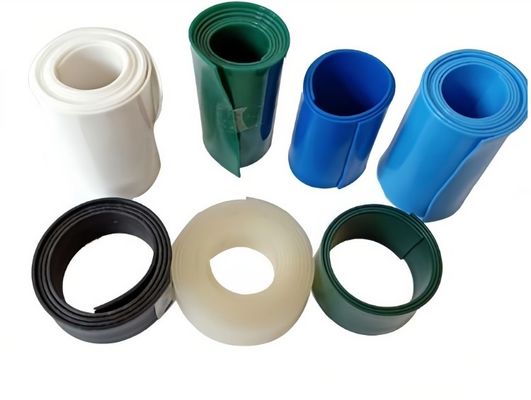

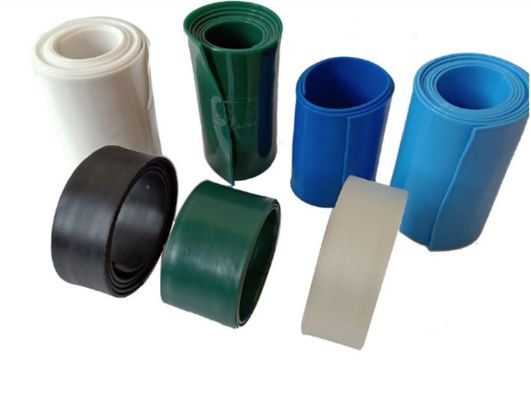

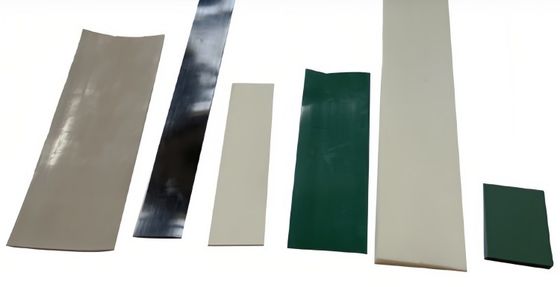

Polyurethane Conveyor Belt Skirting



Urethane conveyor belt skirting as a sealing strip for conveyor system loading, helping to transfer and discharge points, conveyingl material directly to the belt and also helping to reduce leakage.Our polyurethane conveyor skirts are not only to reduce spillage, but also to reduce dust emissions and reduce belt damage.


Feature of Conveyor Belt Skirting



Our Conveyor belt skirting with extremely tough abrasion resistance, chemical resistance, tear resistance, cut resistance and impactl resistance, polyurethane conveyor belt skirts have an average life of 3-5 times that of equivalent rubber skirts.
They are ideal as a sideI skirt on conveyor belt systems to prevent the materials from falling down.


Conveyor Belt Skirting Application



Urethane conveyor skirting is widely used in mining, foundries, aggregates and all light duty industries.



Technical Date of Urethane Conveyor Belt Skirting



Description Urethane Conveyor belt skirting
Material 100%Polyurethane (PU)-TDI-Polyester
Thickness range (mm) 2-30mm,Common thickness 10,12,16mm
Width Range (mm) 10-600mm,Common Width 75,100,125,150,200,250,300mm,
Maximum width can reach 600mm,
Roll Length (m) 15 Mtr/roll or 30Mtr/roll
Hardness (Shore A) 65 shore A~95 shore A
Color Black,Green,Blue,White,Red etc.
Density(g/cm3) 1.25
Tensile Strength (MPa) 40
Elongation at break,% 660
Abrasion Loss,mm3 @10N 40
Angle Tear Strength (DIE C),KN/m 57
Angle Tear Strength (DIE C),KN/m 23
Temperature Range -30~70
Remark Can beproduced with straight edgeor bevel edge 45 or 35
degree asyour request.





Conveyor System PU Extruded Products Polyurethane Skirting For Conveyor Belt 0
