Tear Resistant Polyurethane Conveyor Belt Skirting 10mm 12mm 16mm 65-95 A Hardness

10rolls
MOQ
Tear Resistant Polyurethane Conveyor Belt Skirting 10mm 12mm 16mm 65-95 A Hardness
Features Gallery Product Description Chat Now
Features
Specifications
Material: Polyurethane
Hs Cord: 3926909090
Color: Red, Yellow, Green, Orange, White Or Customized
Application: Stabilise And Guide Curved Belts
Hardness: 60 A-85 A
Original: China
Applicable Temperature: -30℃~80℃
Packing: Plastic Reel And Carton
Highlight:

Urethane Conveyor belt skirting

,

16mm Polyurethane Conveyor Belt Skirting

,

Tear Resistant Conveyor Belt Skirting
Basic Infomation
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm
Payment & Shipping Terms
Packaging Details: plastic reel and carton
Delivery Time: 7working days
Payment Terms: L/C, D/A, D/P, T/T
Product Description
Tear Resistant Polyurethane Conveyor Belt Skirting 10mm 12mm 16mm 65-95 A Hardness
Product Attributes
Attribute Value
Material Polyurethane
Hs cord 3926909090
Color Red, Yellow, Green, Orange, White or Customized
Application Stabilise And Guide Curved Belts
Hardness 60 A-85 A
Original China
Applicable Temperature -30℃~80℃
Packing Plastic Reel And Carton
Product Description

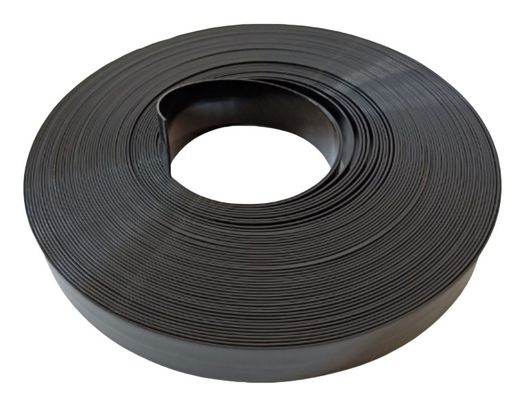

Polyurethane Conveyor Belt Skirting

Urethane conveyor belt skirting serves as a sealing strip for conveyor system loading, helping to transfer and discharge points, conveying material directly to the belt while reducing leakage. Our polyurethane conveyor skirts not only reduce spillage but also minimize dust emissions and decrease belt damage.

Features of Conveyor Belt Skirting
  • Extremely tough abrasion resistance
  • Chemical resistance
  • Tear resistance
  • Cut resistance
  • Impact resistance
  • Average life of 3-5 times that of equivalent rubber skirts
  • Ideal as a side skirt on conveyor belt systems to prevent materials from falling down
Conveyor Belt Skirting Application

Urethane conveyor skirting is widely used in mining, foundries, aggregates and all light duty industries.

Technical Data of Urethane Conveyor Belt Skirting
Description Urethane Conveyor belt skirting
Material 100%Polyurethane (PU)-TDI-Polyester
Thickness range (mm) 2-30mm, Common thickness 10,12,16mm
Width Range (mm) 10-600mm, Common Width 75,100,125,150,200,250,300mm, Maximum width can reach 600mm
Roll Length (m) 15 Mtr/roll or 30Mtr/roll
Hardness (Shore A) 65 shore A~95 shore A
Color Black,Green,Blue,White,Red etc.
Density(g/cm3) 1.25
Tensile Strength (MPa) 40
Elongation at break,% 660
Abrasion Loss,mm3 @10N 40
Angle Tear Strength (DIE C),KN/m 57
Angle Tear Strength (DIE C),KN/m 23
Temperature Range -30~70
Remark Can be produced with straight edge or bevel edge 45 or 35 degree as your request.
Tear Resistant Polyurethane Conveyor Belt Skirting 10mm 12mm 16mm 65-95 A Hardness 0
