Home /Products/PU Reinforced Belt/Industial Reinforced Polyurethane Round Belt V-Belt PU Pentagon Belt Multi Colored

Industial Reinforced Polyurethane Round Belt V-Belt PU Pentagon Belt Multi Colored

10rolls
MOQ
Industial Reinforced Polyurethane Round Belt V-Belt PU Pentagon Belt Multi Colored
Features Gallery Product Description Request A Quote
Features
Specifications
Temperature Resistance: High
Reinforced Type: Reinforced
Durability: Durable
Material: PU
Usage: Industrial
Tensile Strength: High
Belt Type: Belt
Highlight:

Industial Reinforced Polyurethane Round Belt

,

Industial Reinforced PU Pentagon Belt

,

Reinforced Polyurethane V-Belting
Basic Infomation
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm /A-B-C-D-M-Z
Payment & Shipping Terms
Packaging Details: cartons/pallet
Delivery Time: 7working days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100000 meters/month
Product Description

Reinforced Round belt Manufacturer in China

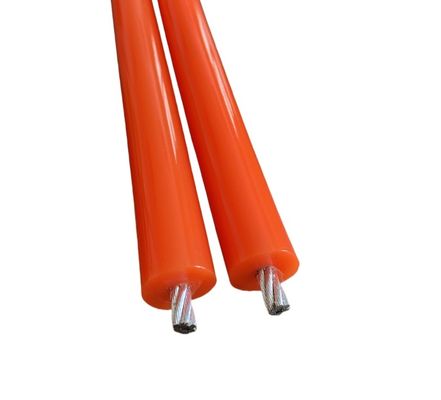

Reinforced Polyurethane Belting are divided into Reinforced v belt and Reinforced Round Belt, Cord material has polyester, kevlar, steel wire as options.

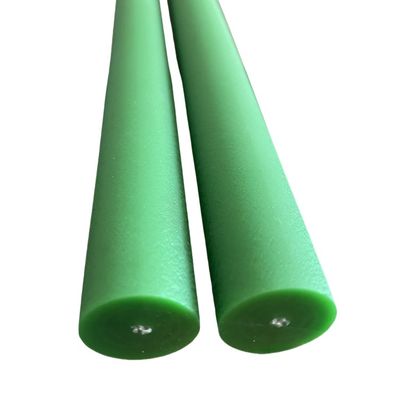

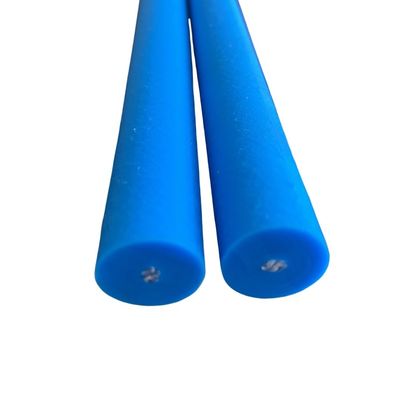

Reinforced Round Belt for Power Transmission Drive



Reinforced polyurethane round belt is high-strength, low-stretch, mainly application for longer conveyor lengths, heavier conveyed loads, medium-duty power transmission.
like cable for canning & filling lines, live roller conveyors, olive sorting machine, potato and fruit sorting machine, veneer hold-down machines, panel board paint rollers, tile, glass, ceramic conveying.
etc.
Size range of Reinforced round belt from Dia.4-20mm.
smooth and rough surface round belt both can produce with reinforced cord.
size range of Reinforced v-belt from type A-13, B-17, C-22 section.
smooth surface.

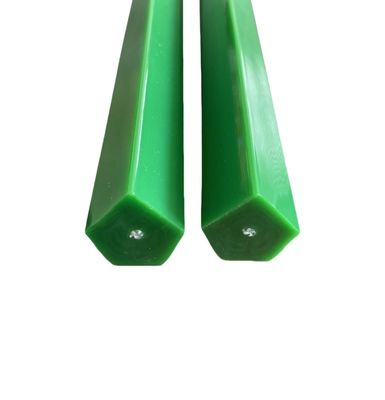

reinforced super grip belt, reinforced ridge topbelt, reinforced PU hexagonal Belt etc. all can produce by us.
Hardness 90 shore A, MOQ request 10 rolls each size.


Reinforced Polyurethane round belt specification:

Sizeφ Roll Length Hardness With Reinforced cord MOQ request
Diameter Mtr/Rolls Shore(A) (OK or Not) 10 rolls
4mm 200 85 or 90A OK 10 rolls
5mm 100 85 or 90A OK 10 rolls
6mm 100 85 or 90A OK 10 rolls
7mm 100 85 or 90A OK 10 rolls
8mm 100 85 or 90A OK 10 rolls
9mm 50 85 or 90A OK 10 rolls
10mm 50 85 or 90A OK 10 rolls
12mm 30 85 or 90A OK 10 rolls
15mm 30 85 or 90A OK 10 rolls
18mm 30 85 or 90A OK 10 rolls
20mm 30 85 or 90A OK 10 rolls

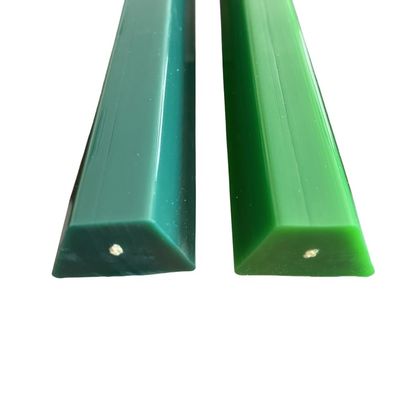

Reinforced PU V-belt Specification:

Type X(mm) Y(mm) Hardness Length -M/Roll With Reinforced cord
A 13 8 90-Shore A 30 OK
B 17 11 90-Shore A 30 OK
C 22 14 90-Shore A 30 OK
D 32 20 90-Shore A 30 OK
M 8 5 90-Shore A 50 OK
Z 10 6 90-Shore A 50 OK





Reinforced PU Ridge Belt & Ridge-top v-belt:

Type X(mm) Y(mm) Hardness Length -M/Roll With Reinforced cord
A 13 16 90-Shore A 30 OK
B 17 20 90-Shore A 30 OK
C 22 27 90-Shore A 30 OK

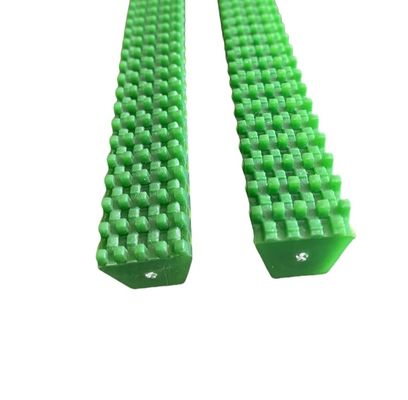

Reinforced PU Super grips Belt:

Type X(mm) Y(mm) Z(mm) Hardness Length -M/Roll With Reinforced cord
A 13 8 3.5 90-Shore A 30 OK
B 17 11 3.5 90-Shore A 30 OK
C 22 14 3.5 90-Shore A 30 OK
D 32 20 3.5 90-Shore A 30 OK







Industial Reinforced Polyurethane Round Belt V-Belt PU Pentagon Belt Multi Colored 0
