Home /Products/PU Reinforced Belt/Green or Red Color PU Reinforced Belt Polyurethane V Belt Diameter 4mm-20mm

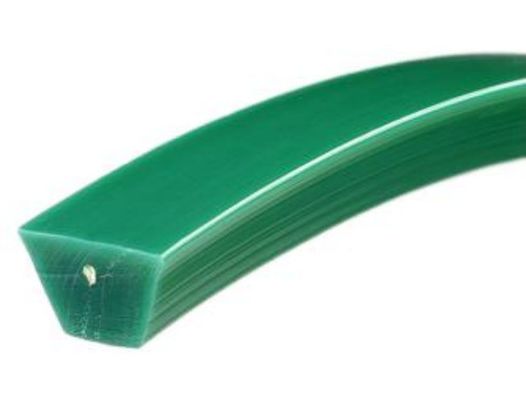

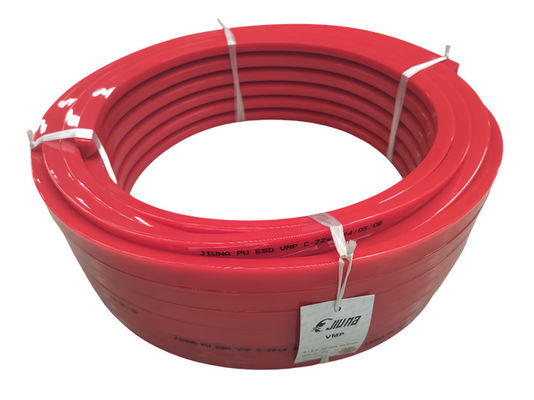

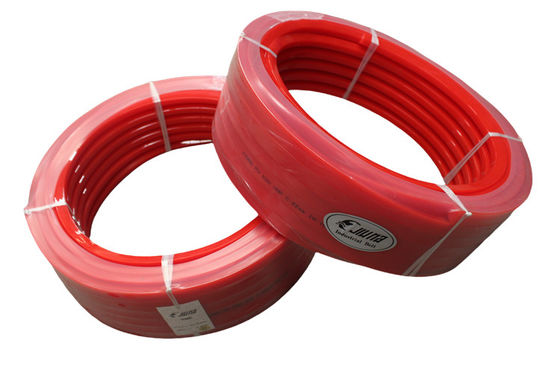

Green or Red Color PU Reinforced Belt Polyurethane V Belt Diameter 4mm-20mm

10rolls
MOQ
Green or Red Color PU Reinforced Belt Polyurethane V Belt Diameter 4mm-20mm
Features Gallery Product Description Chat Now
Features
Specifications
Abrasion Resistance: High
Length: 30-200 Meters
Durability: Long-lasting
Reinforcement: Reinforced
Material: PU
Application: Conveyor Belt, Power Transmission Belt
Color: Red Green Etc
Chemical Resistance: Oil, Grease, Solvents
Highlight:

Red Color PU Reinforced Belt

,

4mm Reinforced Polyurethane V Belt

,

10mm Reinforced Polyurethane V Belt
Basic Infomation
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm /A-B-C-D-M-Z
Payment & Shipping Terms
Packaging Details: cartons/pallet
Delivery Time: 7working days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100000 meters/month
Product Description
Green or Red Color PU Reinforced Belt Polyurethane V Belt Diameter 4mm-20mm
Product Attributes
Abrasion Resistance High
Length 30-200 meters
Durability Long-lasting
Reinforcement Reinforced
Material PU
Application Conveyor Belt, Power Transmission Belt
Color Red, Green, etc.
Chemical Resistance Oil, Grease, Solvents
Product Description

Manufactured in China, our reinforced polyurethane belting is available in both V belt and round belt configurations with reinforcement cord options including polyester, Kevlar, and steel wire.

Reinforced Round Belt for Power Transmission Drive

Our high-strength, low-stretch reinforced polyurethane round belt is ideal for:

  • Longer conveyor lengths and heavier loads
  • Medium-duty power transmission applications
  • Cable for canning & filling lines
  • Live roller conveyors
  • Olive, potato, and fruit sorting machines
  • Veneer hold-down machines
  • Panel board paint rollers
  • Tile, glass, and ceramic conveying

Available in diameters from 4mm to 20mm with both smooth and rough surface options. Minimum order quantity is 10 rolls per size.

Reinforced Polyurethane Round Belt Specifications
Sizeφ Roll Length (Mtr/Rolls) Hardness (Shore A) With Reinforced Cord MOQ Request
4mm 200 85 or 90A OK 10 rolls
5mm 100 85 or 90A OK 10 rolls
6mm 100 85 or 90A OK 10 rolls
7mm 100 85 or 90A OK 10 rolls
8mm 100 85 or 90A OK 10 rolls
9mm 50 85 or 90A OK 10 rolls
10mm 50 85 or 90A OK 10 rolls
12mm 30 85 or 90A OK 10 rolls
15mm 30 85 or 90A OK 10 rolls
18mm 30 85 or 90A OK 10 rolls
20mm 30 85 or 90A OK 10 rolls
Reinforced PU V-Belt Specifications
Type X (mm) Y (mm) Hardness Length (M/Roll) With Reinforced Cord
A 13 8 90-Shore A 30 OK
B 17 11 90-Shore A 30 OK
C 22 14 90-Shore A 30 OK
D 32 20 90-Shore A 30 OK
M 8 5 90-Shore A 50 OK
Z 10 6 90-Shore A 50 OK
Reinforced PU Ridge Belt & Ridge-Top V-Belt Specifications
Type X (mm) Y (mm) Hardness Length (M/Roll) With Reinforced Cord
A 13 16 90-Shore A 30 OK
B 17 20 90-Shore A 30 OK
C 22 27 90-Shore A 30 OK
Reinforced PU Super Grips Belt Specifications
Type X (mm) Y (mm) Z (mm) Hardness Length (M/Roll) With Reinforced Cord
A 13 8 3.5 90-Shore A 30 OK
B 17 11 3.5 90-Shore A 30 OK
C 22 14 3.5 90-Shore A 30 OK
D 32 20 3.5 90-Shore A 30 OK
Green or Red Color PU Reinforced Belt Polyurethane V Belt Diameter 4mm-20mm 0
Tag:

Reinforced Polyurethane Belting

Polyurethane Pentagon Belt

Reinforced PU Belt
