Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness

Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness
Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness

Large Image :  Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness

Product Details:
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm /A-B-C-D-M-Z
Payment & Shipping Terms:
Minimum Order Quantity: 10rolls
Packaging Details: cartons/pallet
Delivery Time: 7working days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100000 meters/month
Contact Now

Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness

Description
Highlight:

90 A Hardnes sReinforced V-Belt

,

Polyurethane Reinforced V-Belt

,

Equipment Transmission Polyurethane Reinforced Belt

Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness
Manufactured in China, our reinforced polyurethane belting solutions are designed for superior power transmission and conveyor applications.
Product Overview
Our reinforced polyurethane belting is available in two main types: Reinforced V-Belts and Reinforced Round Belts. These belts feature high-strength reinforcement cords made from polyester, Kevlar, or steel wire for enhanced durability and performance.
Reinforced Round Belt Applications
Ideal for medium-duty power transmission and conveyor systems requiring high strength with minimal stretch. Common applications include:
  • Canning & filling line cables
  • Live roller conveyors
  • Olive, potato, and fruit sorting machines
  • Veneer hold-down machines
  • Panel board paint rollers
  • Tile, glass, and ceramic conveying systems
Available Specifications
Available in diameters from 4mm to 20mm, with both smooth and rough surface options. Minimum order quantity is 10 rolls per size.
Reinforced Round Belt Specifications
Size (φ) Roll Length (Mtr/Rolls) Hardness (Shore A) Reinforced Cord MOQ
4mm 200 85 or 90A OK 10 rolls
5mm 100 85 or 90A OK 10 rolls
6mm 100 85 or 90A OK 10 rolls
7mm 100 85 or 90A OK 10 rolls
8mm 100 85 or 90A OK 10 rolls
9mm 50 85 or 90A OK 10 rolls
10mm 50 85 or 90A OK 10 rolls
12mm 30 85 or 90A OK 10 rolls
15mm 30 85 or 90A OK 10 rolls
18mm 30 85 or 90A OK 10 rolls
20mm 30 85 or 90A OK 10 rolls

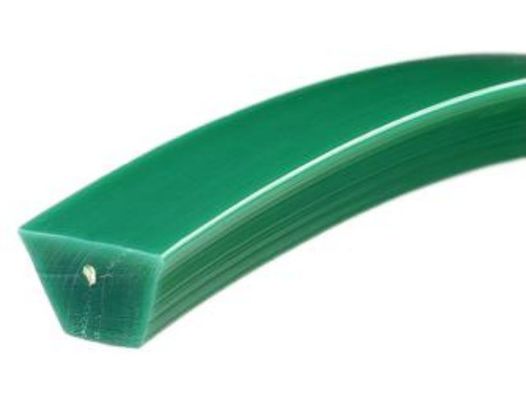

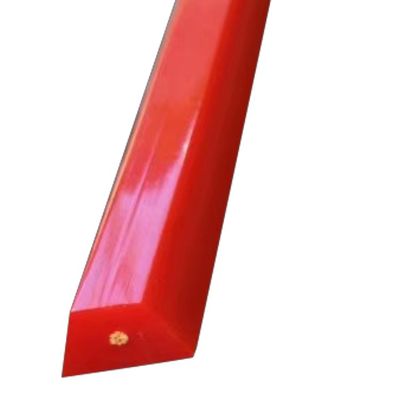

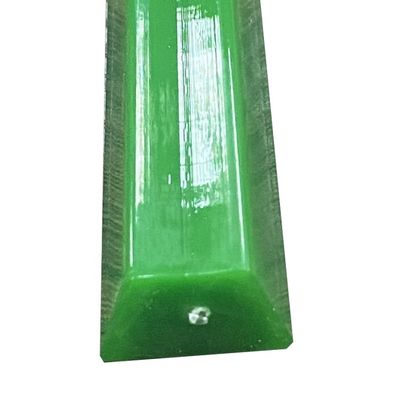

Reinforced PU V-Belt Specifications
Type X (mm) Y (mm) Hardness Length (M/Roll) Reinforced Cord
A 13 8 90-Shore A 30 OK
B 17 11 90-Shore A 30 OK
C 22 14 90-Shore A 30 OK
D 32 20 90-Shore A 30 OK
M 8 5 90-Shore A 50 OK
Z 10 6 90-Shore A 50 OK
Reinforced PU Ridge Belt & Ridge-top V-Belt
Type X (mm) Y (mm) Hardness Length (M/Roll) Reinforced Cord
A 13 16 90-Shore A 30 OK
B 17 20 90-Shore A 30 OK
C 22 27 90-Shore A 30 OK
Reinforced PU Super Grips Belt
Type X (mm) Y (mm) Z (mm) Hardness Length (M/Roll) Reinforced Cord
A 13 8 3.5 90-Shore A 30 OK
B 17 11 3.5 90-Shore A 30 OK
C 22 14 3.5 90-Shore A 30 OK
D 32 20 3.5 90-Shore A 30 OK
Polyurethane Reinforced V-Belt Size A B C For Equipment Transmission 90 A Hardness 0
