Industry nomenclature creates widespread confusion among engineers and suppliers. Professionals often use terms like plate, board, and sheet interchangeably. This semantic overlap frequently leads to costly specification errors. Selecting the wrong form factor or durometer degrades operational performance immediately. You might experience premature wear, sudden equipment failure, or wasted CNC machining time. Misaligned specifications disrupt production schedules and force unexpected maintenance cycles. We built this technical evaluation guide to resolve these material ambiguities. It helps procurement and engineering teams match the correct polyurethane (PU) profile to specific operational stresses. By understanding functional differences, you can confidently specify components for any rigorous industrial environment.
Polyurethane plates are highly rigid, structural components typically used for heavy-duty load bearing and high-impact abrasion resistance.
Polyurethane boards are generally manufactured for machinability and tooling, available in various specific densities.
PU rubber sheets are thinner, flexible elastomer profiles optimized for gasketing, lining, and vibration dampening.
Specification success relies on aligning Durometer (Shore A vs. Shore D), thickness tolerances, and standard stock vs. custom manufacturing lead times.
Understanding industrial polymers begins by clarifying basic terminology. Manufacturers utilize specific form factors to achieve different mechanical outcomes. A precise definition prevents procurement mistakes.

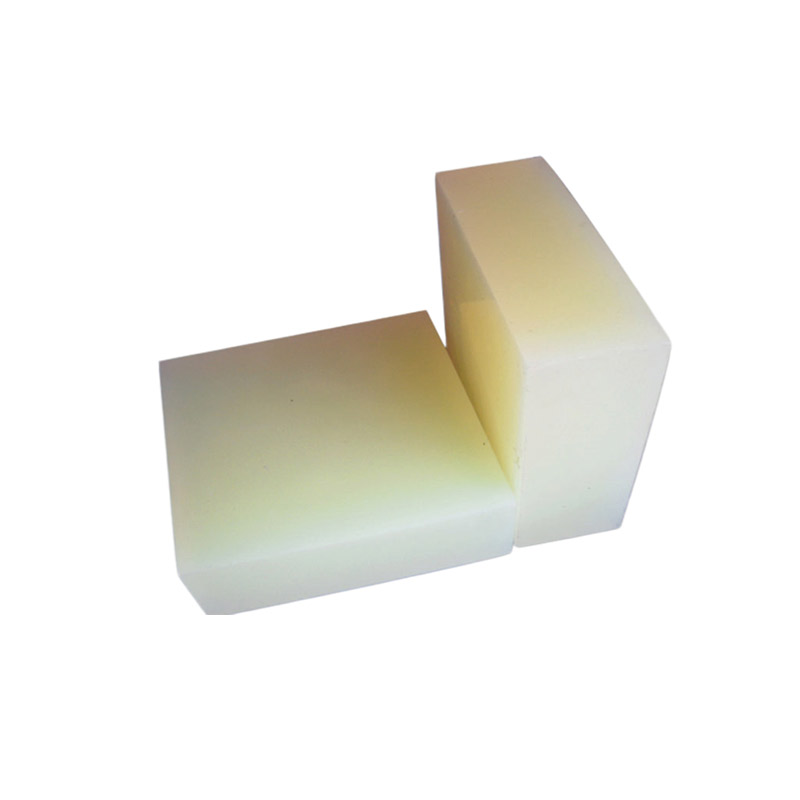

A Polyurethane Plate represents the heaviest and most structural class of flat PU materials. Facilities typically cast these profiles in thicker dimensions. They range from a half-inch up to several inches thick. These thick profiles utilize high durometer formulations. You will mostly see them rated on the Shore D scale.
Engineers design them for maximum structural integrity. They handle immense physical weight and heavy impacts. Heavy industries frequently specify a polyurethane wear plate to protect underlying steel structures. Another common application involves using a robust liner plate inside industrial chutes. These heavy cast pieces absorb kinetic energy without permanently deforming.
The term polyurethane board primarily refers to specialized tooling and modeling materials. Unlike standard casting plates, manufacturers engineer boards specifically for dimensional stability. Density plays a crucial role here. You select specific densities based on required cutting speeds.
These boards focus entirely on ease of CNC machining. A proper tooling board mills cleanly. It refuses to melt or chip under high-speed cutting routers. Pattern makers rely on this stability to create flawless foundry molds and checking fixtures.

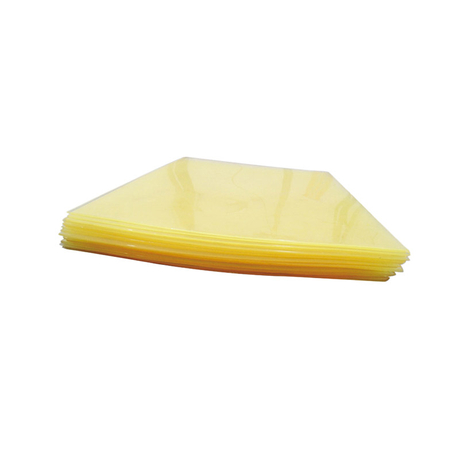

A PU rubber sheet provides an entirely different mechanical function. These profiles consist of thinner gauge materials. You generally find them ranging from 1/16-inch to 1/4-inch in thickness. They utilize a much lower durometer formulation.
Manufacturers measure them on the softer Shore A scale. This creates a highly flexible product. Maintenance teams often cut a thin elastomer sheet to create custom gaskets or vibration dampers. They wrap easily around curved surfaces and conform to irregular flanges.
Selecting the optimal material requires evaluating three primary performance pillars. Durometer, abrasion resistance, and chemical stability dictate long-term success. Overlooking any single criterion guarantees premature component failure.
Durometer measures polymer hardness and directly influences load-bearing capability. A clear trade-off exists between structural rigidity and shock absorption. Higher hardness prevents compression set under heavy weight. However, harder materials reduce overall vibration dampening.
We use a simple framework to choose between Shore scales. Shore A indicates flexibility and elasticity. Choose Shore A when you need a tight fluid seal or gentle cushioning. Shore D indicates rigid impact resistance. Choose Shore D when supporting heavy machinery or resisting gouging impacts.
Industrial friction destroys standard materials rapidly. Polyurethane outlasts traditional rubber and mild steel in high-friction environments. It possesses an exceptional molecular memory. This property allows it to stretch and return to its original shape.
Sliding abrasion dictates your thickness requirements. Continuous friction wears away surface material over time. You must evaluate the type of friction present. High-velocity sliding bulk materials demand a heavy cast plate. A standard thin sheet will quickly tear apart under those specific stresses.
Environmental factors break down polymers chemically. You must evaluate hydrolytic stability carefully. Hydrolysis occurs when prolonged water or humidity exposure degrades the molecular bonds. Certain urethane blends resist moisture much better than others.
Temperature and solvents also pose significant threats. Standard formulations break down quickly around aggressive solvents or strong acids. High-temperature environments create another major limitation. Most standard combinations fail when continuous operating temperatures exceed 180°F (82°C). You must specify specialized high-heat formulations for hot environments.
Material Selection Comparison Chart
Material Format | Typical Scale | Primary Function | Machinability |
|---|---|---|---|
Plate | Shore D | Load Bearing / High Impact | Difficult (Requires rigid tooling) |
Board | Variable Density | Prototyping / Tooling | Excellent (CNC optimized) |
Sheet | Shore A | Gasketing / Vibration Control | Easy (Die-cut or Waterjet) |
Different industrial sectors exploit specific polyurethane properties. Matching the exact format to the environmental application prevents operational bottlenecks. We outline the most common industrial pairings below.
Mining operations expose materials to extreme kinetic forces. Ore and aggregate drop constantly onto conveyor systems. This punishing environment requires maximum durability.
Chute Liners: Direct heavy rock flow without damaging the steel infrastructure.
Hopper Bins: Prevent sticky aggregate accumulation while resisting impact denting.
Impact Pads: Absorb the shock of falling debris at conveyor transfer points.
The recommended format here is a thick rigid plate. Manufacturers often embed metal backings into the casting. This internal steel allows maintenance crews to securely fasten the heavy panels.
The aerospace and automotive sectors demand extreme dimensional precision. They require materials capable of holding tight tolerances during milling. They cannot accept materials prone to warping.
Foundry Patterns: Reusable positive molds for sand casting metal parts.
Forming Dies: Press-brake tooling for shaping soft sheet metals.
Checking Fixtures: Stable reference bases for dimensional quality control.
The recommended format is a specialized tooling board. These blocks provide precise milling tolerances. They eliminate the thermal expansion issues found in standard cast plates.
Material handling and fluid dynamics require compliant polymers. Hard plastics fail to create tight seals. You need flexible materials to block moisture and scrape belts clean.
Flange Gaskets: Compress slightly to seal high-pressure pipe connections.
Scraper Blades: Remove wet debris from moving conveyor belts gently.
Conveyor Skirting: Keep loose powder contained alongside the belt edges.
The recommended format is a flexible sheet. Facilities usually die-cut or waterjet these thinner profiles to exact dimensional specifications.
Procurement teams constantly balance lead times against specific performance requirements. Choosing between off-the-shelf stock and custom orders impacts your maintenance schedule directly. You must analyze urgency versus precision.
Standard flat stock provides immense value for routine operations. Facility managers keep standard sheets readily available in maintenance cages. They offer lower upfront costs and immediate availability.
Stock material handles urgent maintenance repairs efficiently. You can quickly cut a replacement gasket to prevent an unexpected shutdown. Standard MRO (Maintenance, Repair, and Operations) tasks rarely require specialized polymer chemistry. If your application involves basic vibration dampening or simple flange sealing, standard stock performs perfectly.
Sometimes standard inventory falls short of mechanical demands. You must specify a custom PU plate when facing unique operational constraints. Off-the-shelf items cannot solve severe chemical or thermal challenges.
Custom manufacturing solves complex scenarios. You might require non-standard durometers for a unique load requirement. Food processing plants demand FDA-compliant formulations. Safety departments often request specific color-coding to mark hazardous zones.
Custom orders also address tight thickness tolerances. Standard cast sheets undergo natural shrinkage during curing. This creates a standard thickness variance around 10%. Precision mechanical applications cannot tolerate this variance. They require secondary precision grinding, which only custom manufacturers provide.
Installing industrial polymers incorrectly leads to rapid mechanical failures. Even perfectly specified materials will fail under poor installation practices. You must anticipate thermal and mechanical stresses during implementation.
Attaching massive polymer blocks to steel frames requires careful engineering. Thick plates naturally expand and contract with temperature fluctuations. If you bolt them rigidly to a steel frame, the expanding polymer generates massive shear forces. This movement routinely snaps heavy steel bolts.
Engineers solve this fastening risk through smart design. We highly recommend specifying bonded metal backing plates. You weld the backing plate directly to the chute. For thinner flexible sheets, you must utilize specialized industrial adhesive systems rather than mechanical fasteners.
Dynamic compression creates hidden thermal dangers. When you continuously compress and release a polymer, it generates internal heat. Engineers call this phenomenon hysteresis. Polyurethane functions as an excellent thermal insulator. It traps this newly generated heat internally.
Internal hysteresis causes sudden core meltdown in thick parts. Under continuous heavy loads, the center of the block liquefies while the exterior looks fine. You mitigate this risk through proper thickness evaluation. Sometimes you must move from a solid thick block to a thinner ribbed design. Ribbed designs allow continuous airflow to dissipate trapped internal heat.
Specifying industrial polymers requires precise vocabulary and functional understanding. Words like plate, board, and sheet are not just interchangeable keywords. They firmly dictate the manufacturing process, structural rigidity, and optimal installation method. Selecting the correct format prevents costly downtime.
We encourage engineers and buyers to rigorously review their exact environmental stresses. Evaluate your primary abrasion type, chemical exposure risks, and maximum load weight. Finally, consult directly with a specialized manufacturer. Define your exact durometer, tolerance needs, and physical format before finalizing any purchase order.
A: Cast polyurethane naturally shrinks during the curing and cooling process. Because of this thermal contraction, standard commercial tolerances are looser than machined metals, often fluctuating by +/- 10%. If your application requires exact dimensions, you must specify secondary precision grinding.
A: Polyurethane frequently offers better sliding abrasion resistance than mild steel. However, flexible sheets completely lack structural span strength. You cannot use them to bridge gaps or support weight alone. They successfully replace steel only when fully supported by a rigid backing structure.
A: No. Polyurethane tooling boards are specifically engineered for dimensional stability and CNC machinability. Standard thermoplastics like UHMW often warp during aggressive milling or melt under high-speed friction. Tooling boards provide consistent density profiles designed exclusively to hold precise tolerances during pattern making.
A: You have three primary attachment methods. The most robust method utilizes plates manufactured with weldable steel backings. Alternatively, you can use countersunk bolting to keep fastener heads away from the material flow. For lighter impact zones, industrial-grade structural adhesives provide secure bonding.
