Abrasive ore, high-impact drops, and constant vibration in mining and quarrying destroy unprotected equipment. These brutal conditions drive up maintenance costs and force unplanned downtime. You need materials capable of surviving this daily punishment. Polyurethane emerges as a critical wear-mitigation material. It successfully bridges the gap between the elasticity of rubber and the structural toughness of steel.
Selecting the wrong lining material accelerates equipment degradation. It also exposes workers to unnecessary safety hazards during frequent replacement cycles. This guide provides site managers and procurement engineers with a reliable technical framework. You will learn how to evaluate, specify, and source the correct Pu Sheets for heavy-duty material handling. We explore different hardness grades, backing options, and installation methods. You can finally stop reacting to equipment failures. Instead, you will proactively extend the lifespan of your critical infrastructure.
Application Dictates Formulation: Success requires matching the specific Shore hardness and polyurethane formulation to the exact type of wear (sliding abrasion vs. high-angle impact).
Backing Matters as Much as the Material: Unbacked, fabric-backed, and steel-backed sheets each have distinct installation requirements and failure risks.
Supplier Vetting: A reliable custom PU sheet supplier must provide traceability, consistent durometer ratings, and application-specific engineering support.
Constant degradation of transfer points and storage vessels creates massive operational headaches. Material spillage leads to wasted product. Equipment fatigue follows shortly after. Soon, hazardous working conditions emerge across the facility. You cannot afford to leave steel structures exposed to raw aggregate.
Many site managers traditionally rely on rubber to protect steel. Polyurethane, however, significantly outperforms rubber in sliding abrasion environments. It offers superior cut and tear resistance. You will notice this advantage particularly when processing sharp, jagged aggregates like crushed granite or quartz. Rubber tends to tear under these sharp edges. Polyurethane actively resists gouging. We must acknowledge, though, that thick rubber still remains preferable for absorbing massive, blunt boulder impacts in primary crushing stages.
You might also compare polyurethane to standard Abrasion Resistant (AR) steel plates. Polyurethane delivers distinct weight advantages over steel. Lighter liners require less labor and lighter lifting equipment during installation. Furthermore, PU features incredible noise dampening properties. Crushing and sorting rock generates deafening noise. Using polyurethane helps you maintain OSHA and MSHA noise compliance limits. Finally, PU remains entirely non-corrosive. It thrives in wet processing environments where steel quickly rusts.
You must measure success using clear, quantifiable metrics. Track reductions in maintenance labor hours. Measure increased intervals between routine change-outs. You should also monitor noise decibel reduction around screening stations. These metrics provide a clear picture of performance improvements over time.

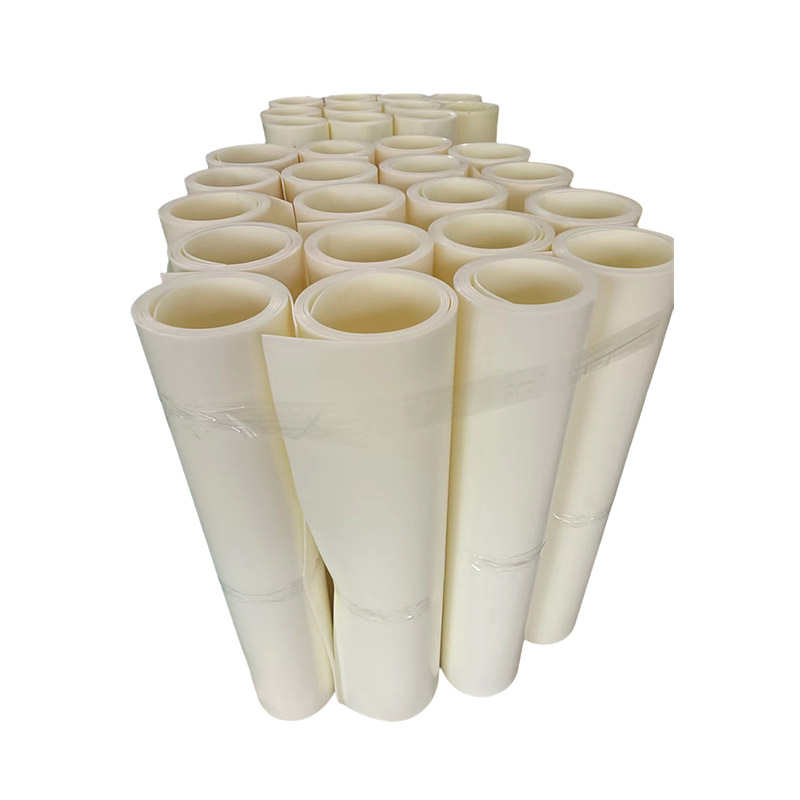

Identifying the right application zones ensures maximum protection. Let us examine the most critical areas in a processing facility.
Transferring material between conveyors creates severe wear bottlenecks. Installing a quarry chute liner made of polyurethane prevents material hang-ups. Polyurethane possesses a naturally low-friction coefficient. This smooth surface stops fine materials from bridging or caking. It ensures consistent, predictable material flow. You avoid dangerous blockages and manual clean-out tasks.
Hoppers endure relentless physical punishment. Dropping heavy, abrasive ores into hoppers requires serious impact mitigation. A high-quality hopper lining absorbs tremendous kinetic energy. The material compresses slightly under load and then rebounds. This resilience prevents permanent deformation or cracking. The steel structure beneath remains completely shielded from the violent force of falling rock.
Conveyor belts represent a massive capital investment. You must protect them while preventing fugitive dust. Using specialized conveyor skirting controls spillage perfectly. These PU skirts seal tightly against the moving belt. Unlike stiff rubber or old conveyor belting, polyurethane skirts will not gouge your belt cover. They extend conveyor life while improving local air quality through dust suppression.
Secondary applications also benefit from strategic upgrades. Vibratory screen components experience constant, high-frequency motion. Polyurethane absorbs this vibration efficiently. It dampens operational noise. These traits represent critical compliance and safety factors for any modern mineral processing operation.
Specifying a mining polyurethane wear sheet requires careful technical evaluation. Hardness and chemical formulation determine field success. You evaluate hardness using the Shore Durometer scale.
You cannot use a single hardness grade for every application. Different wear zones require specific physical properties.
Shore 60A - 75A: These softer grades work best for high-impact zones. They offer maximum rebound and flexibility. You should use them where large aggregate drops occur. The softer material acts like a shock absorber.
Shore 80A - 90A: This represents the industry standard. It delivers balanced impact resistance and sliding abrasion resistance. You will typically find this grade in standard chute and hopper lining applications.
Shore 90A - 95A+ (and Shore D): These harder grades handle severe sliding abrasion. They resist cutting from fine, sharp particles. You should deploy them for sand, slurry, or grain handling. They offer lower friction but less impact absorption.
Not all polyurethane is created equal. Manufacturers use different base chemistries. You must choose between Polyether and Polyester base formulations.
Polyether formulations excel in wet environments. They offer excellent hydrolytic stability. They resist breaking down when submerged in water or acidic slurries. Polyester formulations provide superior oil resistance. They also deliver slightly better sliding abrasion resistance in dry applications. Choosing the wrong chemistry leads to premature material degradation.
Feature | Polyether-Based Polyurethane | Polyester-Based Polyurethane |
|---|---|---|
Best Operating Environment | Wet, humid, or submerged conditions | Dry conditions with high friction |
Hydrolytic Stability (Water Resistance) | Excellent | Poor to Moderate |
Oil and Chemical Resistance | Moderate | Excellent |
Sliding Abrasion Resistance | Good | Superior |
Primary Application Examples | Wash plants, slurry pipes, flotation tanks | Dry chutes, grain handling, conveyor skirts |
The material itself only solves half the problem. Installation methodology determines long-term reliability. Sheets come with various backing options.
Unbacked sheets present distinct limitations. You often must use industrial bonding agents to secure them. Sometimes, you rely on edge bolting. High shear forces create a major risk here. Heavy sliding rock can easily peel an unbacked sheet away from its substrate. You should reserve unbacked sheets for low-impact, lightweight applications.
Fabric backing adds a critical layer of structural support. The fabric improves adhesive bonding strength significantly. You can cold-bond these sheets directly to steel substrates. The adhesive grips the fabric much better than it grips bare polyurethane. This method works well for retrofitting complex, curved chutes where mechanical fastening proves impossible.
This remains the premium choice for severe mining applications. An abrasion resistant PU sheet poured directly over a steel backing plate guarantees structural integrity. The steel backing allows for secure, mechanical fastening. You can use welded studs or countersunk bolts. Mechanical fastening eliminates the risk of adhesive failure under heavy loads. The sheet simply cannot peel away.
Even the best materials fail if installed incorrectly. You must avoid these common installation errors.
Incorrect adhesive curing times: Putting a bonded chute back into service too quickly destroys the adhesive bond. You must follow the manufacturer's exact curing schedule.
Failing to map fastener patterns: You should never place bolt lines directly in the primary path of material flow. The abrasive material will quickly destroy the bolt heads. Place seams and fasteners out of the direct impact zone.
Improper surface preparation: Bonding requires perfectly clean steel. Skipping the sandblasting step guarantees adhesive failure. Dirt, rust, and old paint destroy bonding integrity.
You cannot treat polyurethane liners as a generic commodity. Sourcing requires careful vendor evaluation. A reliable custom PU sheet supplier acts as an engineering partner.
You must evaluate a supplier's consistency. Ask them about their manufacturing tolerances. They should guarantee exact thickness and flatness across large batch orders. Inconsistent durometer accuracy causes uneven wear rates. If one side of a sheet is softer than the other, the entire liner fails prematurely.
Mining equipment rarely fits standard dimensions. The ability to specify exact dimensions is a requirement, not a perk. Your supplier should offer pre-drilled bolt holes matching your existing equipment. They should also provide custom dual-durometer formulations. A dual-durometer sheet features a hard outer wear layer and a softer, impact-absorbing inner layer.
Always request empirical testing data. A reputable supplier will gladly provide DIN abrasion test results (ISO 4649). You should also review their tensile strength and elongation at break data. These laboratory metrics prove the material's structural integrity before you install it in a harsh quarry environment.
Ensure the supplier adheres to industry-standard safety protocols. They must follow strict environmental manufacturing guidelines. Ask them to provide clear Material Safety Data Sheets (MSDS) and Technical Data Sheets (TDS). Traceability ensures you receive the exact chemical formulation you ordered.
Specifying PU sheets is an engineering decision, not a simple commodity purchase. Choosing the right material requires a deep understanding of your operational realities. You must respect the intense forces acting upon your equipment every single day.
We recommend a systematic approach. First, audit the specific wear zone. Determine whether your equipment suffers primarily from sliding abrasion or high-angle impact. Next, select the correct Shore hardness and appropriate backing method. Finally, partner with a verified supplier capable of stringent quality control.
Your next step should involve a practical evaluation. We highly recommend conducting a site wear-audit. Request pilot test samples from your supplier. Install these samples in a high-wear zone and monitor their performance. Validating the material on a small scale guarantees success before committing to a full facility retrofit.
A: Wear life heavily depends on tonnage, particle size, and drop height. However, standard polyurethane generally provides a 3x to 5x longer wear life compared to traditional rubber. This impressive multiplier holds true especially when processing fine-to-medium abrasive aggregates.
A: Yes. You can easily retrofit them over existing steel plates. Fabric-backed sheets utilize specialized industrial adhesive bonding. Steel-backed variants require mechanical fastening. Mechanical bolting usually provides much better retention in severe impact zones.
A: Standard polyurethane formulations handle ambient temperatures up to 180°F to 200°F (82°C to 93°C). Beyond these limits, mechanical properties degrade rapidly. The material becomes soft and loses abrasion resistance. Buyers must avoid using standard PU in high-heat applications to prevent catastrophic failures.
A: It depends entirely on the specific formulation. Polyester-based polyurethane resists oils, fuels, and specific solvents exceptionally well. Polyether-based polyurethane excels against water degradation and resists many common flotation chemicals utilized in wet mineral processing circuits.
