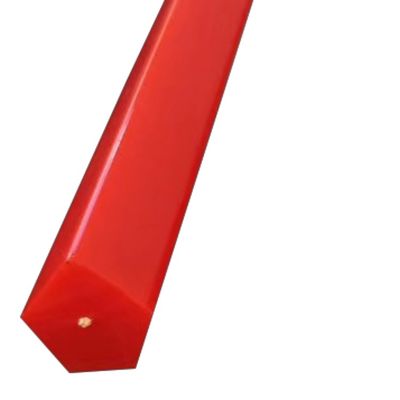

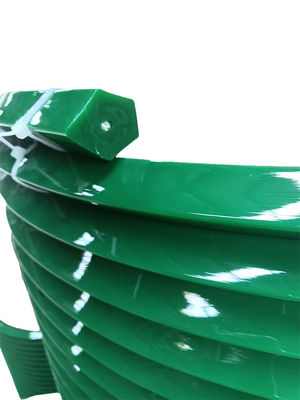

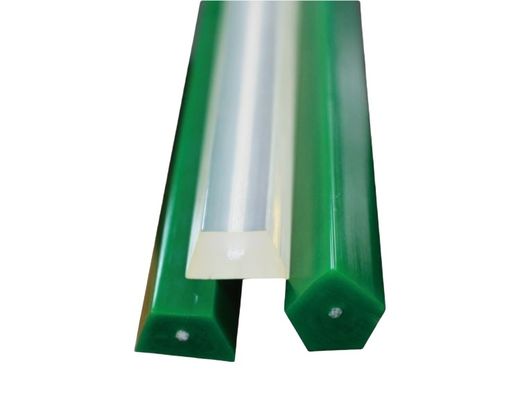

Reinforced Polyurethane Pentagon Belt Size A/B/C For Transmission 90 A Hardness

10rolls
MOQ
Reinforced Polyurethane Pentagon Belt Size A/B/C For Transmission 90 A Hardness
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Reinforced Polyurethane Pentagon Belt

,

Reinforced Polyurethane Belt For Transmission

,

90 A Reinforced Pentagon Belt
Basic Infomation
Place of Origin: China
Brand Name: jiuna
Certification: iso9001:2015
Model Number: 2mm-20mm /A-B-C-D-M-Z
Payment & Shipping Terms
Packaging Details: cartons/pallet
Delivery Time: 7working days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100000 meters/month
Product Description
Reinforced Polyurethane Pentagon Belt Size A/B/C For Transmission 90 A Hardness
Product Overview

Manufactured in China, our reinforced polyurethane belting solutions include reinforced V-belts and reinforced round belts, available with polyester, Kevlar, or steel wire cord materials for enhanced durability and performance.

Key Features & Applications
  • High-strength, low-stretch construction ideal for demanding transmission applications
  • Perfect for longer conveyor lengths and heavier loads
  • Widely used in canning & filling lines, live roller conveyors, sorting machines (olive, potato, fruit), veneer hold-down machines, panel board paint rollers, and tile/glass/ceramic conveying systems
  • Available in smooth and rough surface variations with reinforced cord
  • Standard hardness of 90 Shore A
  • Minimum order quantity: 10 rolls per size
Reinforced Round Belt Specifications
Sizeφ Roll Length Hardness With Reinforced Cord MOQ Request
4mm 200 Mtr/Rolls 85 or 90A OK 10 rolls
5mm 100 Mtr/Rolls 85 or 90A OK 10 rolls
6mm 100 Mtr/Rolls 85 or 90A OK 10 rolls
7mm 100 Mtr/Rolls 85 or 90A OK 10 rolls
8mm 100 Mtr/Rolls 85 or 90A OK 10 rolls
9mm 50 Mtr/Rolls 85 or 90A OK 10 rolls
10mm 50 Mtr/Rolls 85 or 90A OK 10 rolls
12mm 30 Mtr/Rolls 85 or 90A OK 10 rolls
15mm 30 Mtr/Rolls 85 or 90A OK 10 rolls
18mm 30 Mtr/Rolls 85 or 90A OK 10 rolls
20mm 30 Mtr/Rolls 85 or 90A OK 10 rolls
Reinforced PU V-Belt Specifications
Type X(mm) Y(mm) Hardness Length -M/Roll With Reinforced Cord
A 13 8 90-Shore A 30 OK
B 17 11 90-Shore A 30 OK
C 22 14 90-Shore A 30 OK
D 32 20 90-Shore A 30 OK
M 8 5 90-Shore A 50 OK
Z 10 6 90-Shore A 50 OK
Reinforced PU Ridge Belt & Ridge-Top V-Belt
Type X(mm) Y(mm) Hardness Length -M/Roll With Reinforced Cord
A 13 16 90-Shore A 30 OK
B 17 20 90-Shore A 30 OK
C 22 27 90-Shore A 30 OK
Reinforced PU Super Grips Belt
Type X(mm) Y(mm) Z(mm) Hardness Length -M/Roll With Reinforced Cord
A 13 8 3.5 90-Shore A 30 OK
B 17 11 3.5 90-Shore A 30 OK
C 22 14 3.5 90-Shore A 30 OK
D 32 20 3.5 90-Shore A 30 OK
Reinforced Polyurethane Pentagon Belt Size A/B/C For Transmission 90 A Hardness 0
