Premium urethane pipeline pigs for oil & gas, water, and chemical pipelines. Durable, flexible, high-temperature resistant. Ideal for cleaning, dewatering, batching, and ILI preparation. Custom sizes 2”–60”.
Core Keywords: Urethane pipeline pigs, polyurethane pipeline pigs, pipeline cleaning pigs, oil gas pipeline pigs, high-temperature pipeline pigs

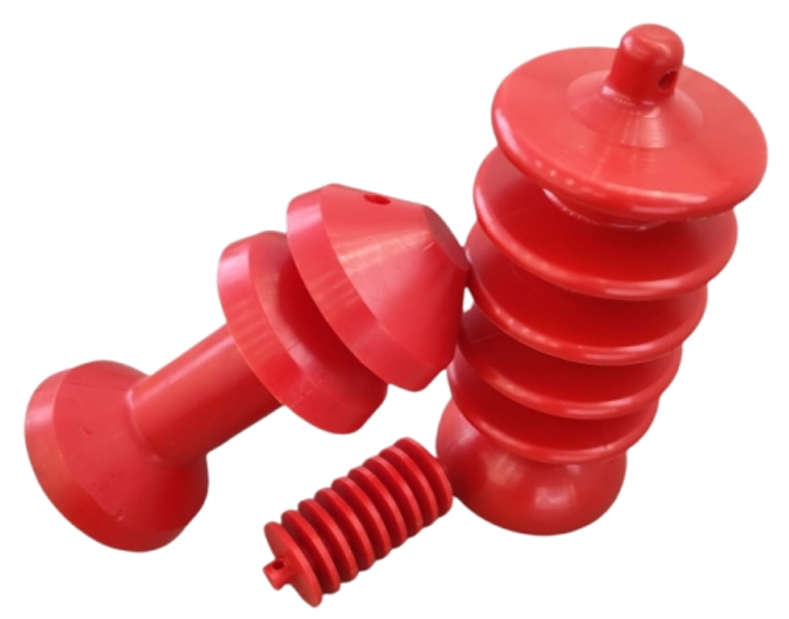

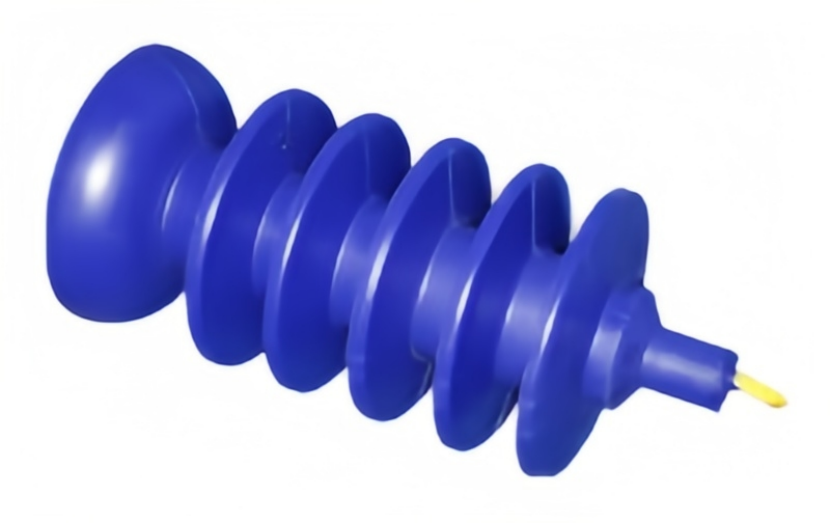

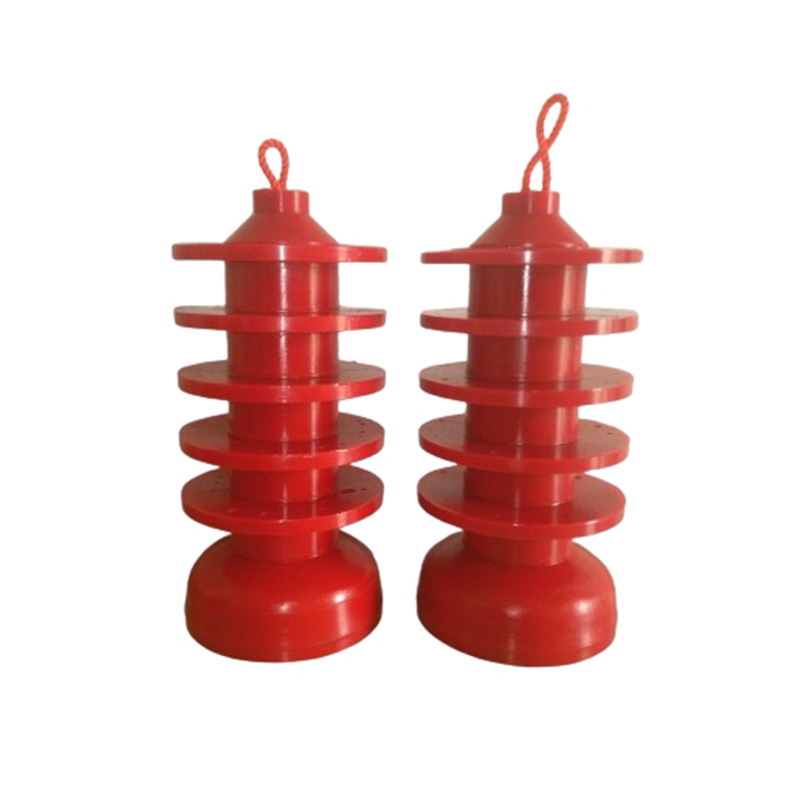

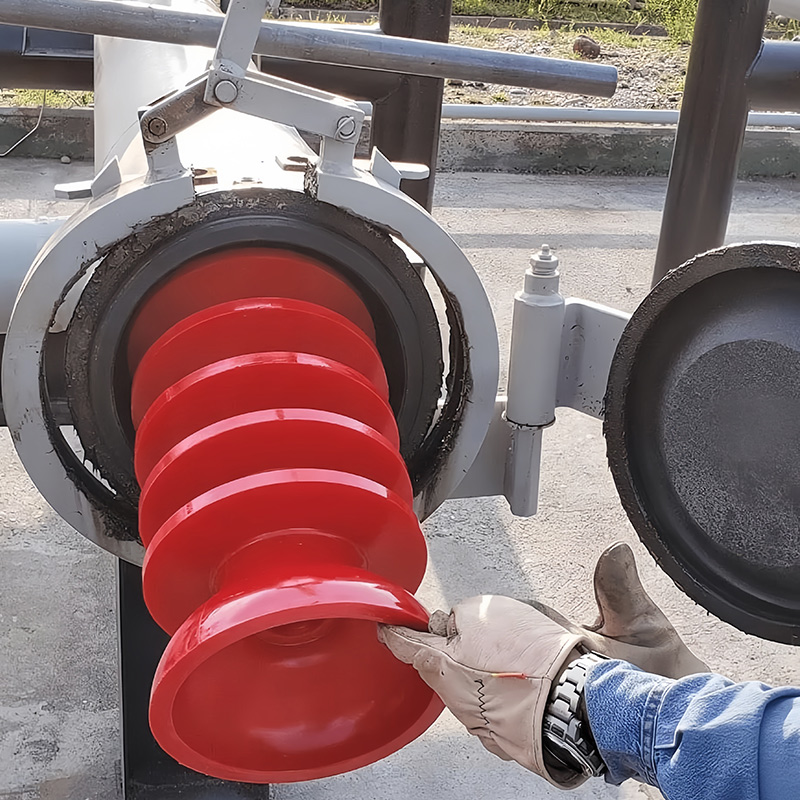

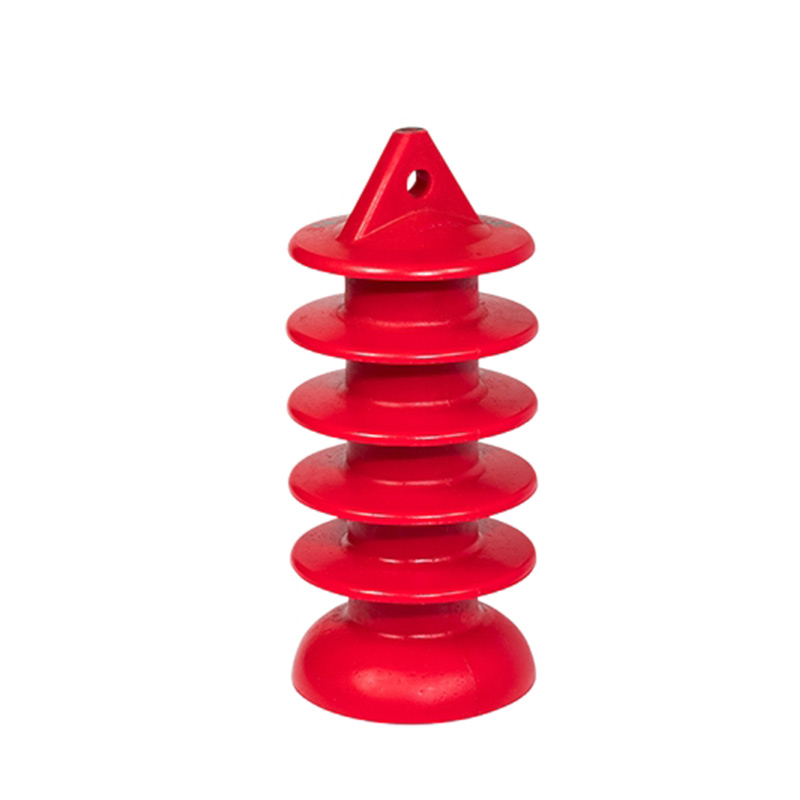

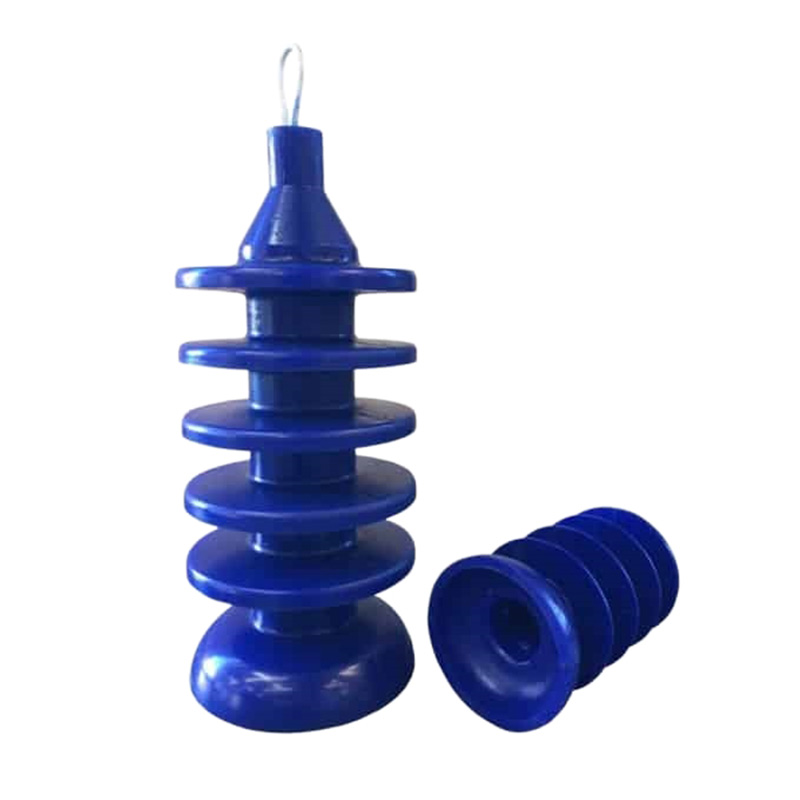

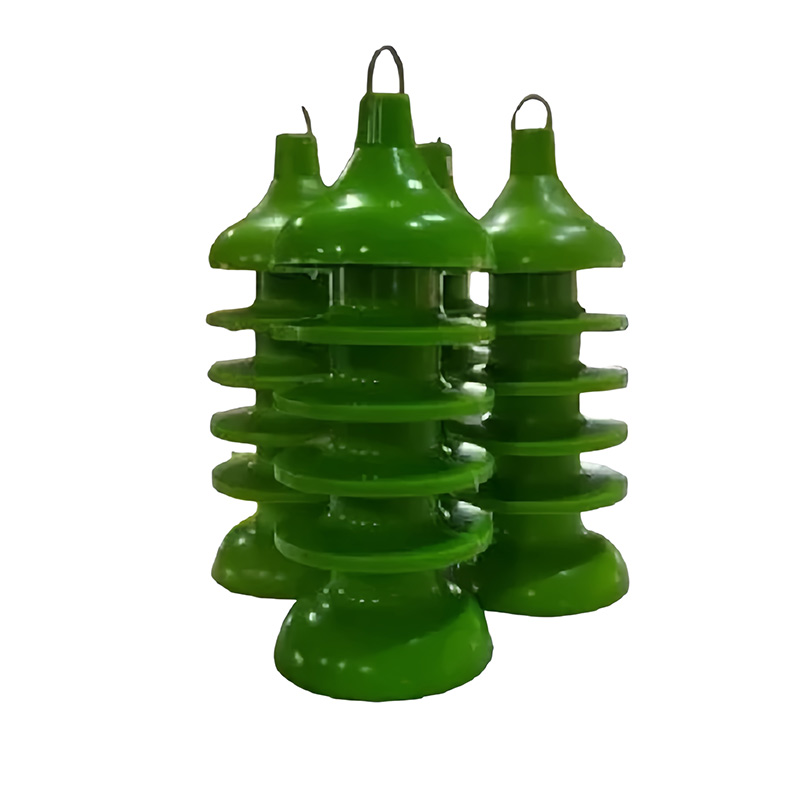

Product OverviewUrethane pipeline pigs (also called polyurethane pigs) are solid-cast or foam-based elastic tools designed for pipeline cleaning, debris removal, liquid displacement, and inline inspection (ILI) preparation. Crafted from high-performance polyurethane, these pigs deliver exceptional durability, flexibility, and sealing ability, making them suitable for complex pipeline geometries and harsh operating conditions. Unlike traditional metal pigs, urethane pigs are lightweight, corrosion-resistant, and cost-effective, with excellent resistance to oil, chemicals, and abrasion. They effectively remove wax, scale, sludge, metal fines, and residual liquids, restoring pipeline flow efficiency and reducing corrosion risks. |  |
 | Key Features & Benefits Superior Material Performance· High-quality polyurethane (Shore A 60–98A / Shore D 75D) for optimal elasticity and wear resistance. · Withstand temperatures from -40°C to +120°C (high-temp models up to 120°C). · Excellent tear strength (>95 kN/m) and elongation at break (>550%) for long service life. |
Flexible & Navigable Design
· Negotiate 1.5D bends, valves, and diameter restrictions up to 20%.
· Bidirectional capability for versatile pigging operations.
· Custom lengths (1.5× DN standard) for optimal sealing and cleaning.
Efficient Cleaning & Sealing
· Multiple cup/disc configurations for maximum debris removal and sealing.
· Interference fit (3–9% of pipe ID) ensures tight contact with pipe walls.
· Suitable for dry/wet cleaning, dewatering, product batching, and ILI prep.
Cost-Effective & Low Maintenance
· Lightweight design reduces handling and driving pressure (≥0.3 MPa).
· Resistant to corrosion, oil, and most chemicals; no rust or degradation.
· Reusable with long service life (up to 300 km for foam models).
Parameter | Specification |
Material | High-performance polyurethane (cups/discs); carbon steel/stainless steel core |
Size Range | 2” – 60” (custom sizes available) |
Hardness | Shore A 60A (soft) – 98A (medium); Shore D 75D (hard) |
Operating Temperature | -40°C to +120°C (standard); up to 120°C (high-temp) |
Minimum Bending Radius | ≥1× DN |
Driving Pressure | ≥0.3 MPa (optimal: 0.5–1.0 MPa) |
Running Speed | ≤2 m/s (recommended: 0.5–1.5 m/s) |
Interference | 3–9% of pipe inner diameter |
Tear Strength | >95 kN/m |
Elongation at Break | >550% |
Wear Resistance | <0.003 cc/1.61 km |
Density Grade | Density (kg/m³) | Applications |
Light | 16–35 | Drying, sweeping loose debris, gauging |
Medium | 80–120 | General cleaning, liquid removal, batching |
High | 120–220 | Heavy cleaning, scale/wax removal, long-distance |
Applications
Urethane pipeline pigs serve diverse industries and pipeline types:
· Oil & Gas: Crude oil, refined products, natural gas, NGL pipelines (wax/scale removal, batching).
· Water & Wastewater: Municipal water mains, sewage lines (dewatering, sediment removal).
· Chemical & Petrochemical: Process pipelines (product separation, chemical-resistant cleaning).
· Power Generation: Cooling water, fuel pipelines (debris removal, maintenance).
· Pigging Operations: ILI preparation, pipeline commissioning, decommissioning, and routine maintenance.

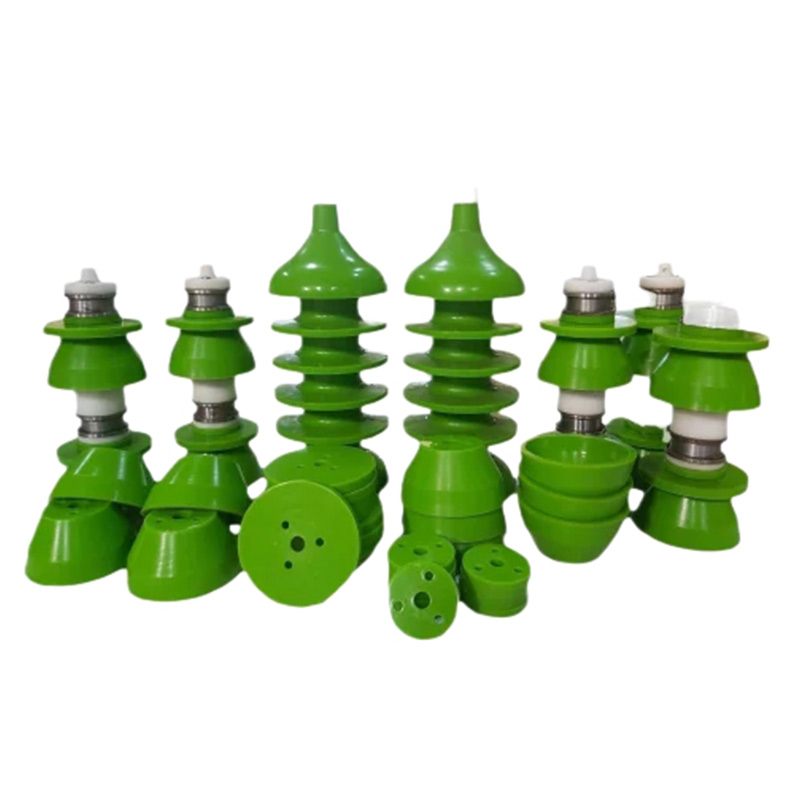

· Design: Cup, disc, combination cup-disc, foam, or brush configurations.
· Attachments: Magnets (ferrous debris), wire brushes, bypass jets, tracking transmitters.
· Hardness: Custom Shore A/D ratings for specific fluid compatibility.
· Coatings: Abrasion-resistant coatings (3–6 mm) for long-distance or harsh environments.
· Tracking: Integrated transmitter cavities for real-time location monitoring.
· Factory Direct: Professional manufacturer with 10+ years of pipeline pigging experience.
· Premium Quality: Strict ISO quality control; all materials tested for performance and durability.
· Global Compliance: Meet API, ASME, and industry standards for pipeline equipment.
· Technical Support: Free consultation, custom design, and on-site installation guidance.
· Fast Delivery: Standard sizes in stock; custom orders shipped within 7–14 days.
For more details, quotes, or custom urethane pipeline pig solutions, contact our engineering team today. We provide tailored pigging solutions to optimize your pipeline maintenance efficiency and reduce operational costs.
