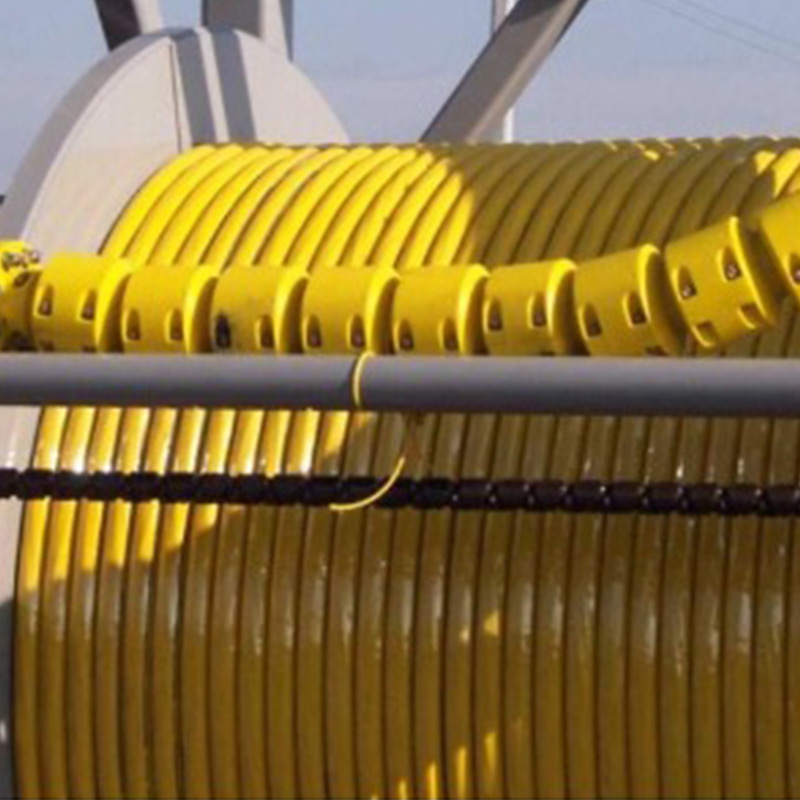

Polyurethane Vertebrae Bend Restrictors – Ultimate Subsea Cable Protection

Polyurethane Vertebrae Bend Restrictors (VBRs) are modular, interlocking subsea protection devices engineered to prevent excessive bending of cables, umbilicals, and flowlines at rigid interfaces (e.g., J-tube exits, riser bases, termination points). Constructed from high-performance polyurethane, these "vertebrae"-shaped segments mimic spinal flexibility while enforcing a minimum bend radius (MBR), eliminating cable fatigue, sheath damage, and structural failure in harsh marine environments. Unlike traditional metallic bend restrictors, our PU VBRs are non-corrosive, lightweight, and boltless, delivering superior durability and 50–70% faster installation for offshore wind, oil & gas, and subsea communication projects.

Key Features & Benefits

Lightweight & Neutral Buoyancy

· High-strength polyurethane (density: ~1.1–1.2 g/cm³) reduces underwater weight by 60–80% vs. steel VBRs

· Almost neutrally buoyant minimizes strain on cables and installation equipment

· Easier manual handling; no heavy lifting gear required

Corrosion & Chemical Resistance

· 100% non-metallic construction (no bolts, fasteners, or metal inserts) eliminates cathodic protection needs

· Resists seawater, oil, UV, hydrolysis, and marine growth

· Operating temperature: -62°C to +93°C (-80°F to +200°F)

· 25+ year design life in subsea environments

Boltless Interlocking Design

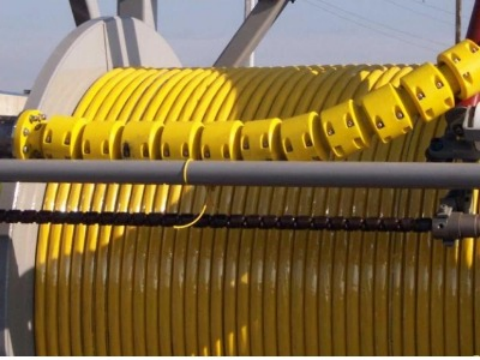

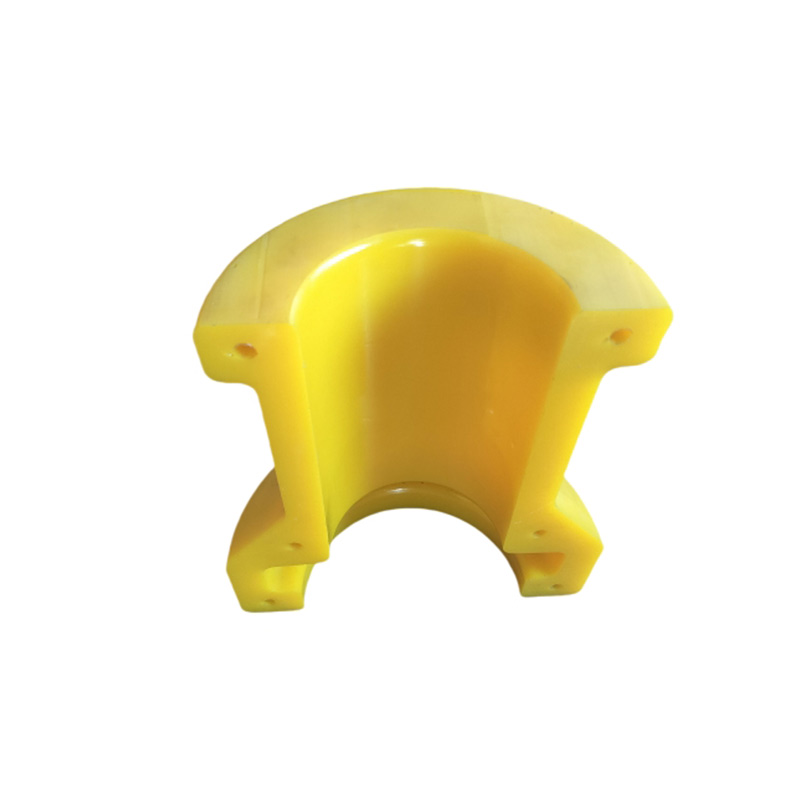

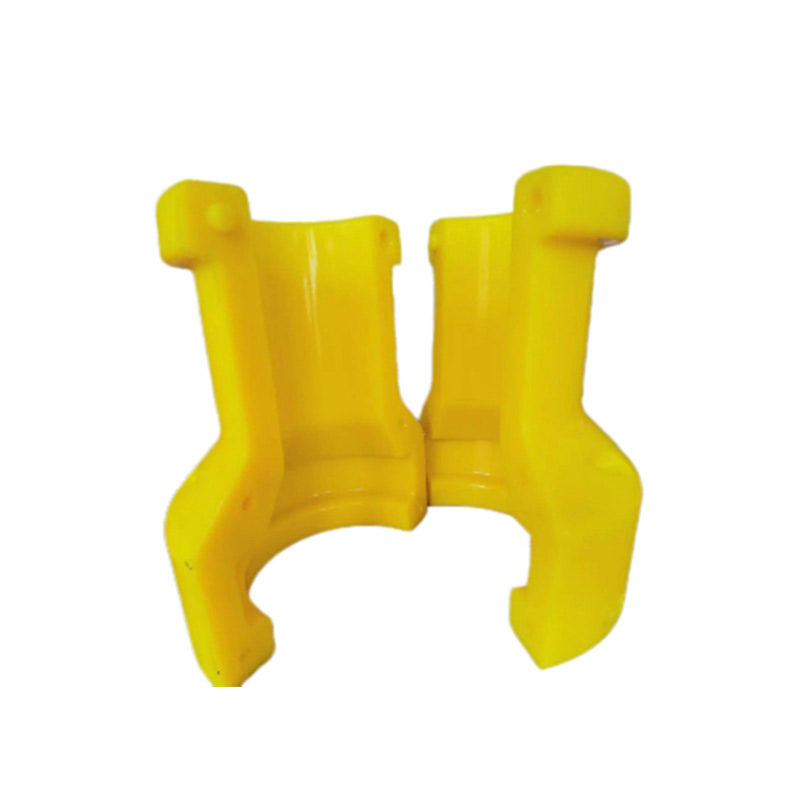

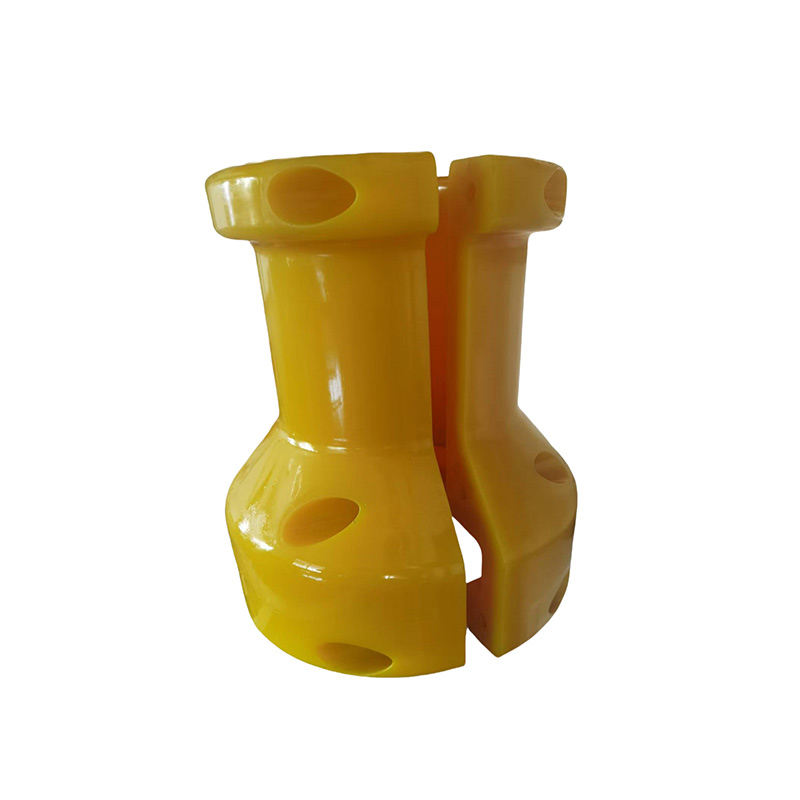

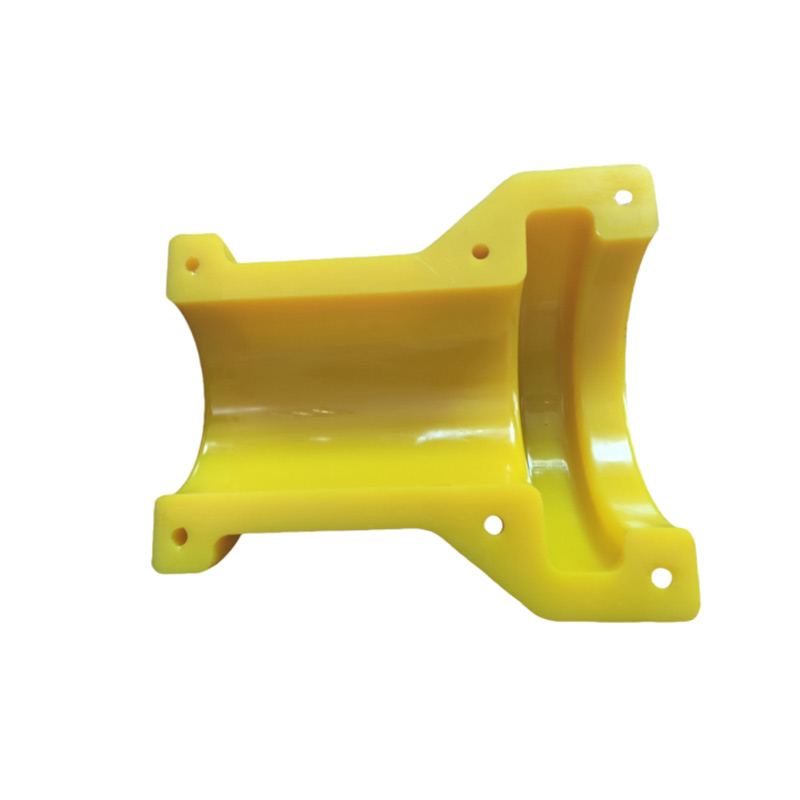

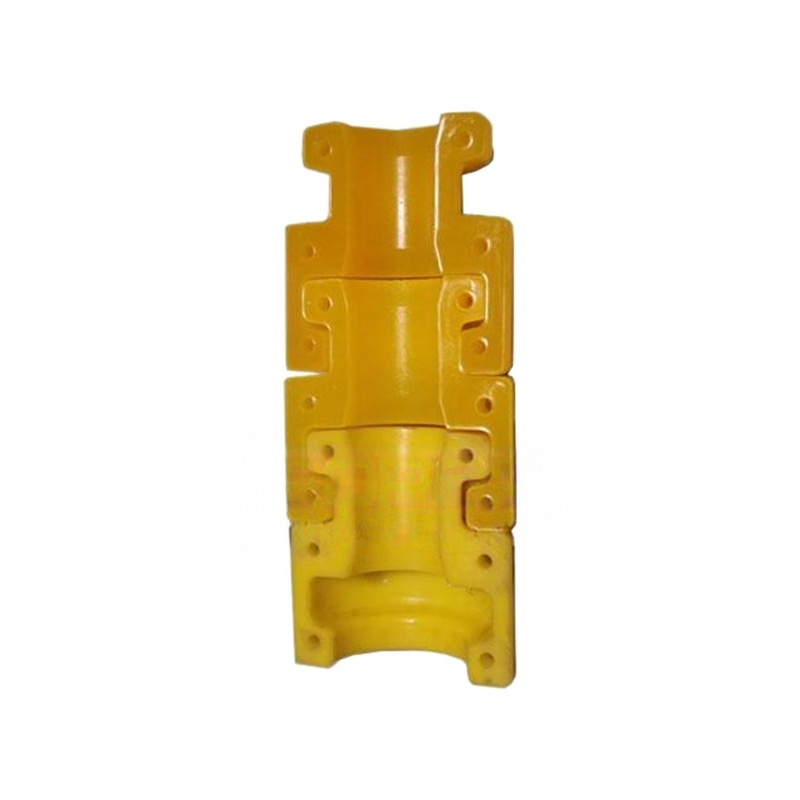

· Two symmetrical half-shells with vertebral interlock (Hinged Articulated Vertebrae, HAV)

· Tool-free assembly; segments snap together in seconds

· Modular length customization (add/remove segments for project-specific MBR)

· No loose parts; maintains integrity under dynamic wave/current loads

Precision Bend Control

· Enforces minimum bend radius (MBR): 10–15 × cable OD (customizable)

· Allows free bending within safe limits; locks to prevent over-bending

· Reduces cable fatigue by 90% at critical transition zones

Cost-Effective & Low Maintenance

· Lower upfront cost than steel VBRs; zero maintenance over design life

· Faster installation cuts offshore vessel time and labor costs

· Compatible with dynamic (floating) and static (seabed) applications

Technical Specifications

Material Properties

Dimensional & Performance Specs

Mechanical & Environmental Ratings

· Impact Resistance: Excellent (withstands dropped objects, wave impact)

· Abrasion Resistance: 5× higher than rubber; protects cable sheaths

· Dynamic Load Capacity: Up to 50 kN (tensile); 20 kN (compressive)

· Storage Temperature: -40°C to +60°C

· Installation Temperature: -20°C to +50°C

Applications

· Offshore Wind Farms: Inter-array cables, export cables at turbine J-tubes and substation transitions

· Oil & Gas: Umbilicals, risers, flowlines at FPSO/FSRU connections, J-tube exits, seabed touchdown zones

· Subsea Communication: Fiber-optic cables, power cables in crossing areas and high-motion zones

· Marine Renewable Energy: Wave/tidal energy cables, floating solar power systems

Installation

1. Clean cable surface and align VBR half-shells around the cable

2. Snap segments together via interlocking vertebrae (no tools/bolts)

3. Add/remove segments to achieve required length and MBR

4. Secure at both ends with cable ties or clamps (optional)

5. Install at rigid interfaces (J-tube, riser, termination) before cable deployment

Customization

We offer full customization to match your project requirements:

· Cable-specific inner diameter and MBR

· Length and segment count

· Hardness (70D/85D) and color

· Special additives (fire retardant, anti-fouling)

· Third-party certification (DNV, ABS, Lloyd’s)

Why Choose Our Polyurethane VBRs?

· Factory Direct: ISO 9001-certified manufacturing; competitive pricing

· Engineering Support: Free design consultation, 3D modeling, and FEA analysis

· Global Delivery: Fast shipping to offshore project sites worldwide

· Warranty: 2-year manufacturer warranty; 25+ year design life
