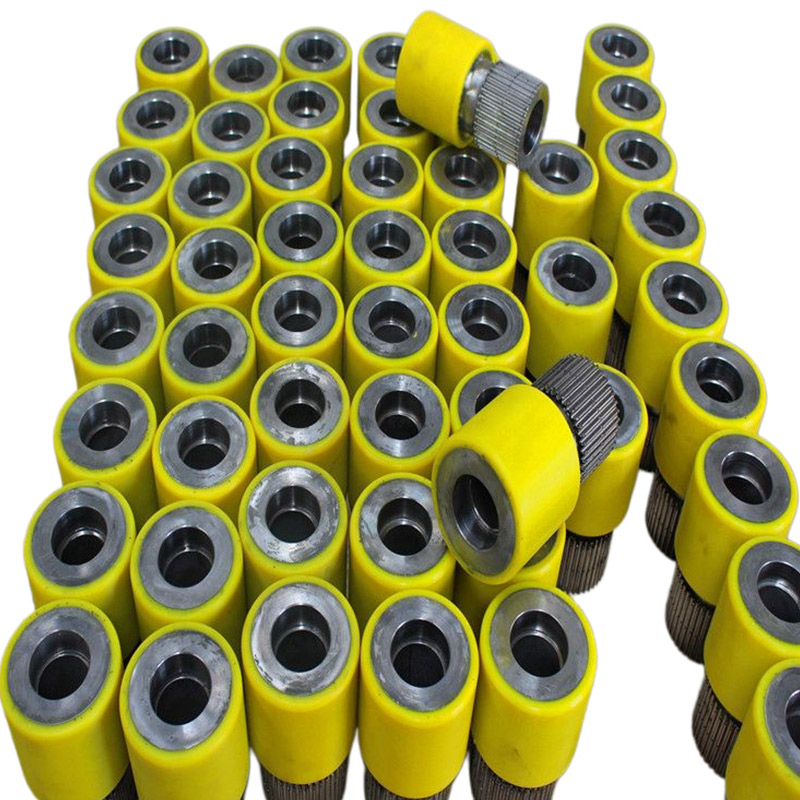

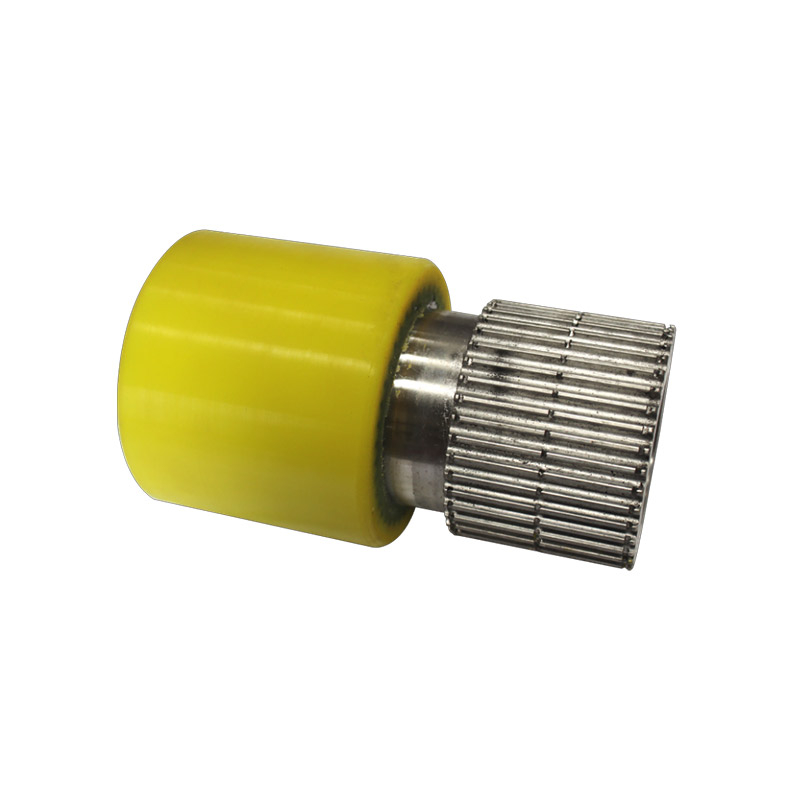

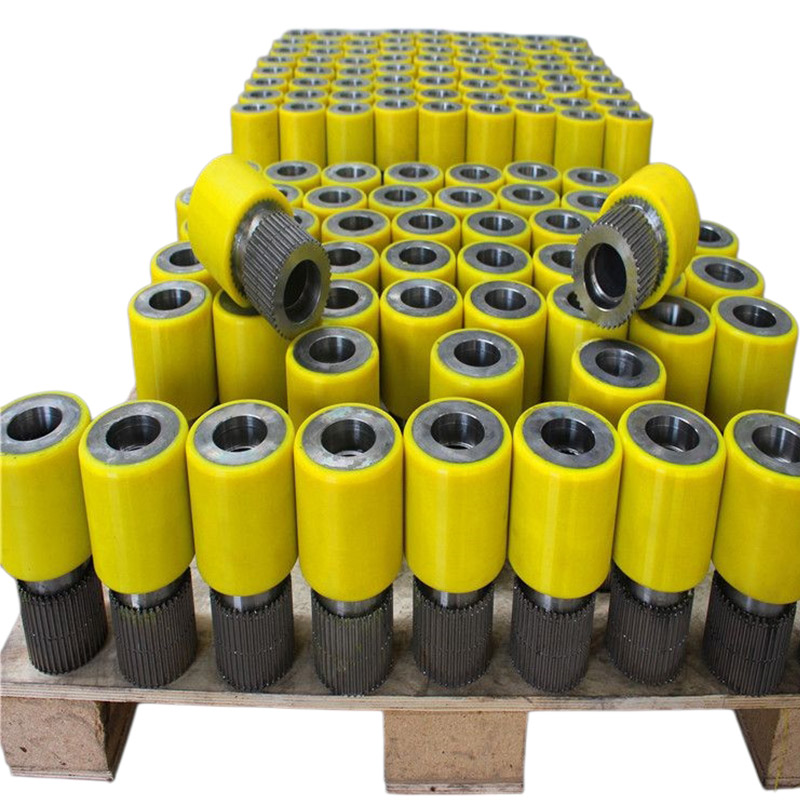

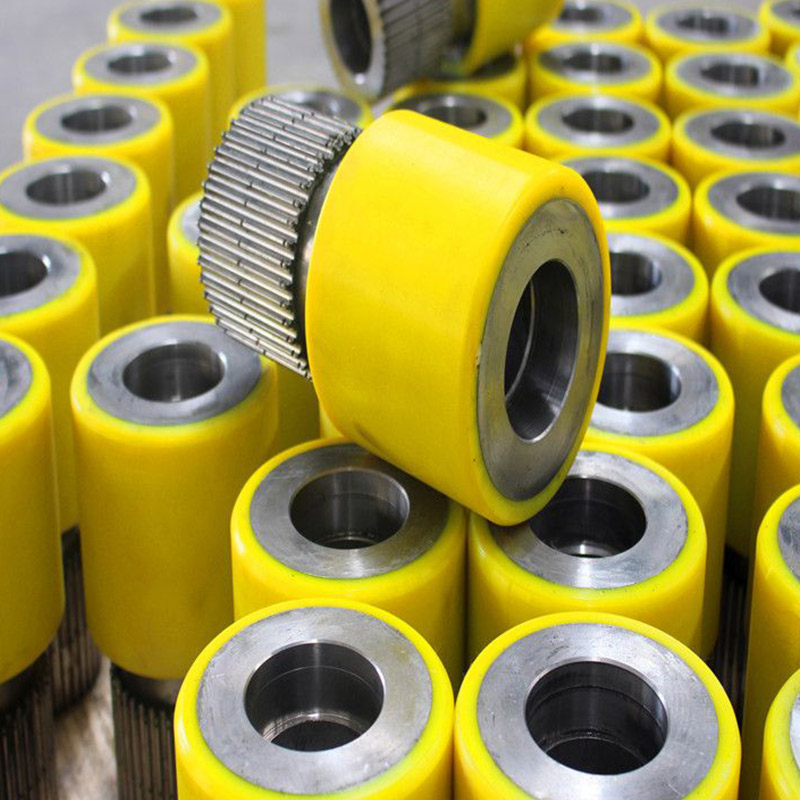

Polyurethane slide conveyor wheels are engineered exclusively for automotive skid conveyor systems, serving as core components for welding, painting, and final assembly lines. Featuring a high-strength steel core and wear-resistant polyurethane tread, these wheels deliver exceptional load capacity, low noise, chemical resistance, and long service life—critical for reliable, high-efficiency automotive manufacturing.
Key Features & Benefits
Ultra-High Load Capacity
• Single-wheel dynamic load: 1–5 tons (custom up to 10 tons)
• Steel core with heat treatment for maximum structural rigidity
Application-Specific Hardness
• Welding lines: 90A–98A (impact & heat resistance)
• Assembly lines: 70A–85A (noise reduction & floor protection)
Superior Wear Resistance
• Polyurethane tread: 3–5× more durable than rubber
• Akron abrasion: 0.02 cm³/1.61 km (polyether-grade formula)
Low Noise & Smooth Operation
• Noise level: <60 dB at 24 m/min (typical line speed)
• Precision bearing + curved tread design minimizes vibration
Chemical & Environmental Resistance
• Resists oils, greases, weak acids, and paint shop chemicals
• Temperature range: -30°C to +100°C
Precision & Durability
• TIR (runout): ≤0.05 mm for high-speed stability
• Service life: 12–18 months (24/7 operation, 300 kg load)
Easy Installation & Maintenance
• Modular bolt-on design for quick replacement
• Sealed bearings prevent contamination in harsh environments
Technical Specifications
1. Dimensions (Standard & Custom)
Parameter | Standard Range | Custom Options |
Wheel Diameter | 32 mm – 120 mm | 150 mm – 600 mm |
Tread Width | 20 mm – 80 mm | Up to 150 mm |
PU Tread Thickness | 8 mm – 25 mm | Custom thickness |
Bore Diameter | 12 mm – 50 mm | Custom shafts |
2. Material Properties
Component | Material | Key Properties |
Core | 45# Steel / Cast Iron | Heat-treated, high strength, minimal deflection |
Tread | Polyether Polyurethane | Shore A 70–98, rebound ≥45%, oil-resistant |
Bearings | Deep Groove Ball / Tapered Roller | Precision grade, sealed, lubricated for life |
Hardness | 70A–98A (Shore A) | Tuned for application (welding/assembly) |
3. Performance Ratings
Parameter | Value | Notes |
Dynamic Load | 1,000 kg – 5,000 kg | Per wheel, depending on size |
Static Load | 2,000 kg – 10,000 kg | Parked load capacity |
Max Speed | 40 m/min – 80 m/min | Higher speeds with precision balancing |
Operating Temp | -30°C to +100°C | Continuous; intermittent up to 120°C |
Noise Level | <60 dB | At 24 m/min (assembly line speed) |
Abrasion Resistance | 0.02 cm³/1.61 km | Akron test, polyether formula |
Rebound | ≥45% | Excellent shock absorption |
4. Dimensional Precision
• Total Indicated Runout (TIR): ≤0.05 mm
• Concentricity: ≤0.03 mm
• Surface Roughness: Ra ≤1.6 μm
Applications
• Welding Lines: High-impact, high-temperature environments (90A–98A hardness)
• Paint Shops: Chemical resistance, low contamination risk
• Final Assembly Lines: Low noise, smooth operation (70A–85A hardness)
• Skid Conveyor Systems: Automated material handling for car bodies & components
Customization Options
• Size: Custom diameters (150–600 mm) and widths
• Hardness: Tailored Shore A (70–98) for specific tasks
• Color: Black, yellow, red, or custom colors
• Bearings: Heavy-duty, high-temperature, or stainless steel options
• Coatings: Anti-rust, anti-corrosion, or food-grade finishes
Why Choose Our Polyurethane Wheels?
• Automotive-Grade Quality: Designed for the rigorous demands of auto manufacturing
• Cost-Effective: Longer life reduces downtime & replacement costs
• Proven Reliability: Used by major automakers worldwide
• Technical Support: Engineering team to assist with selection & customization
Ordering Information
• MOQ: 50 pieces
• Production Lead Time: 15–20 days (standard); 7–10 days (rush)
• Warranty: 12 months under normal operating conditions
