As a premier manufacturer and supplier of advanced screening solutions, we present the Polyurethane Screen Mesh. Engineered for heavy-duty classification, this sieve mesh combines structural integrity with exceptional longevity to optimize your processing facility.

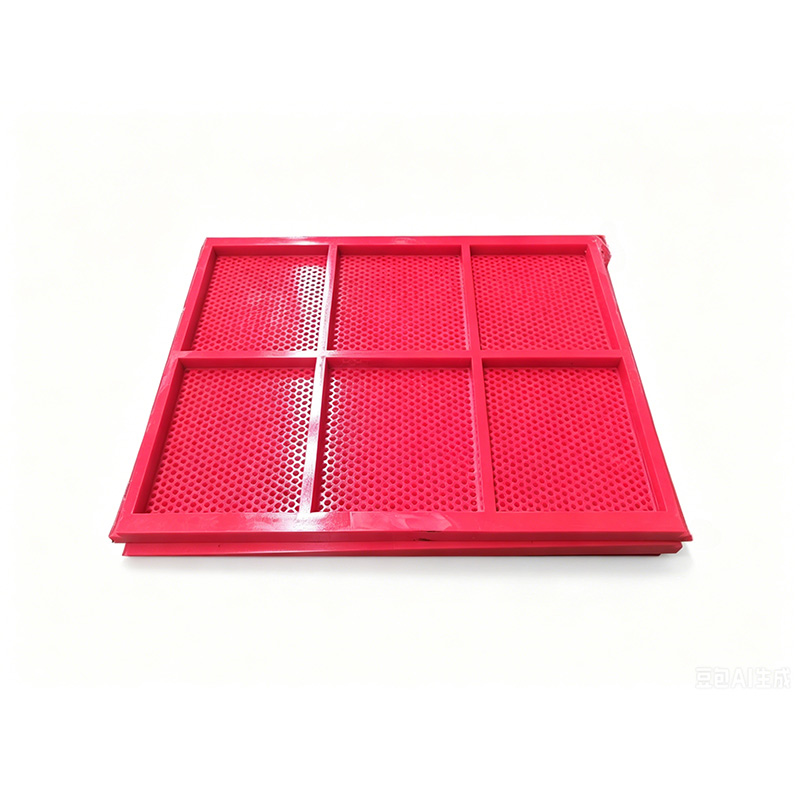

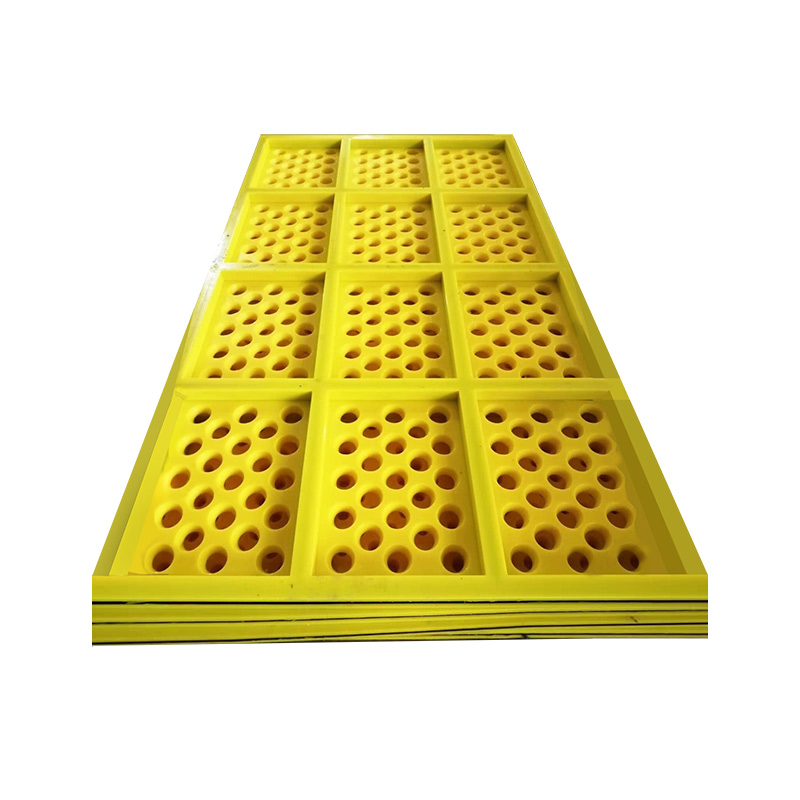

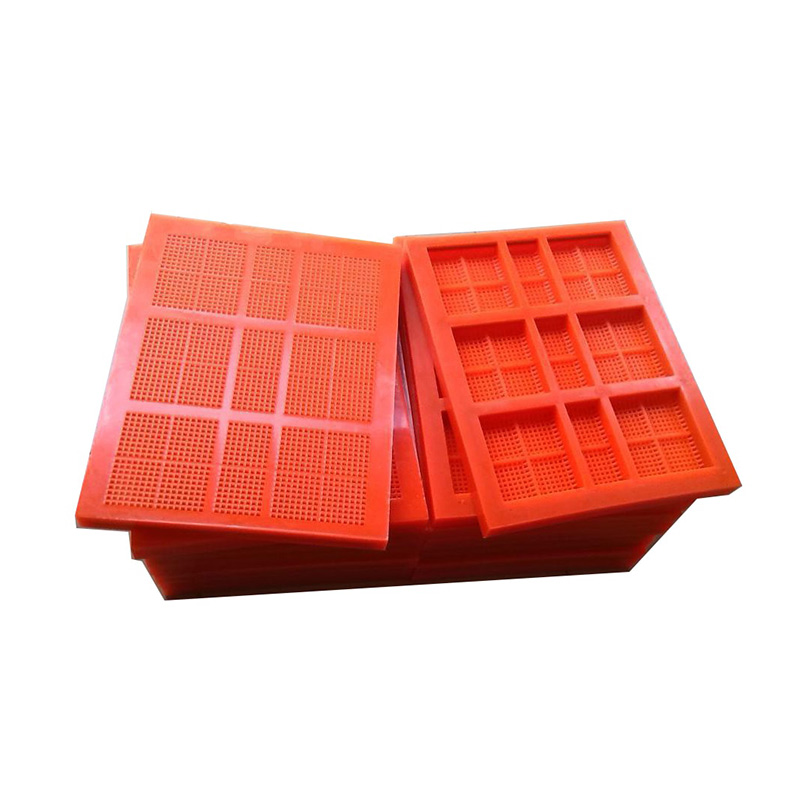

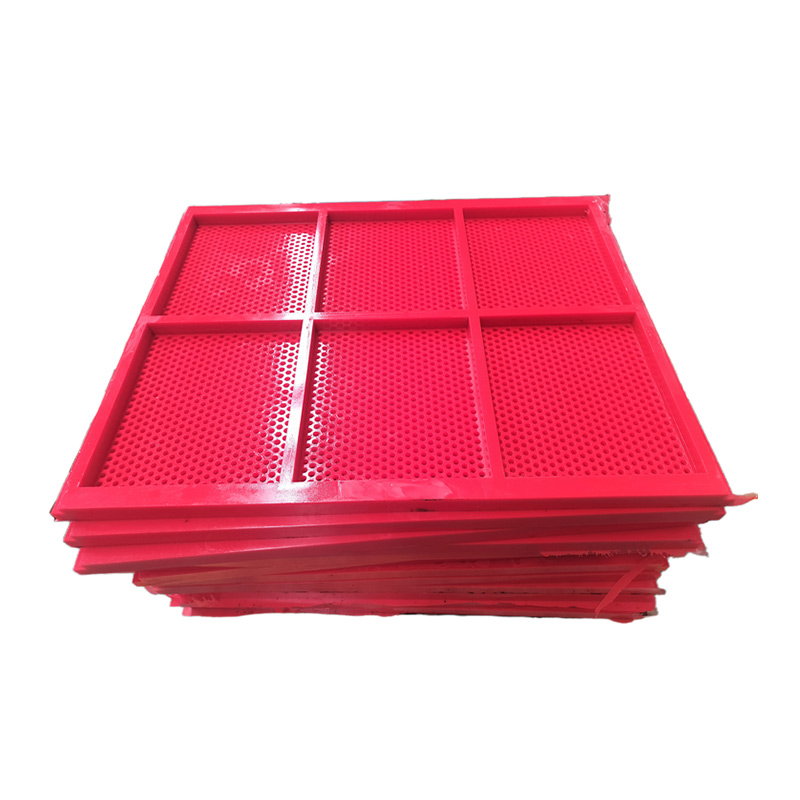

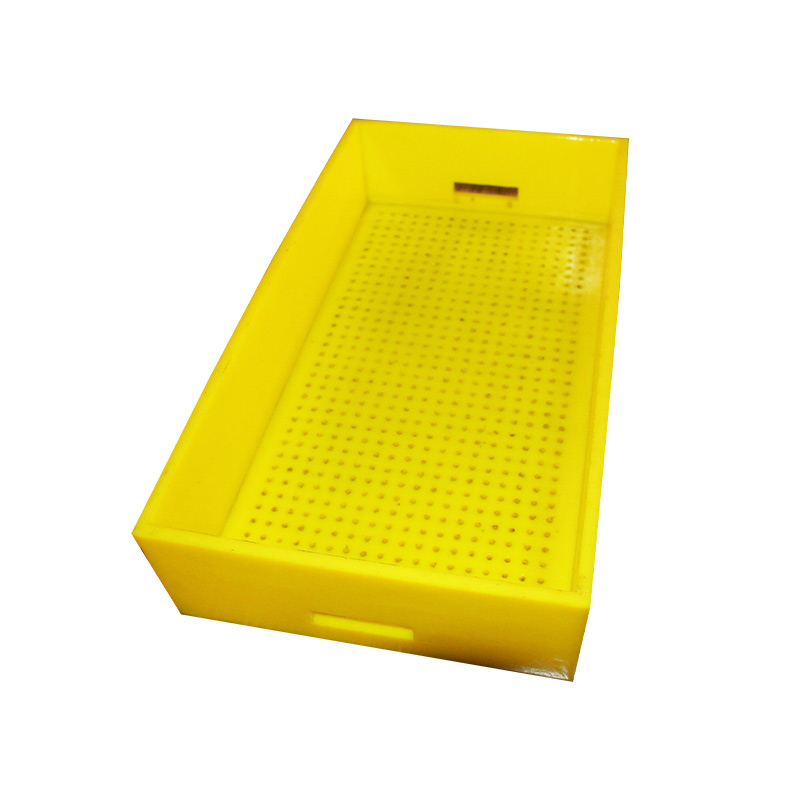

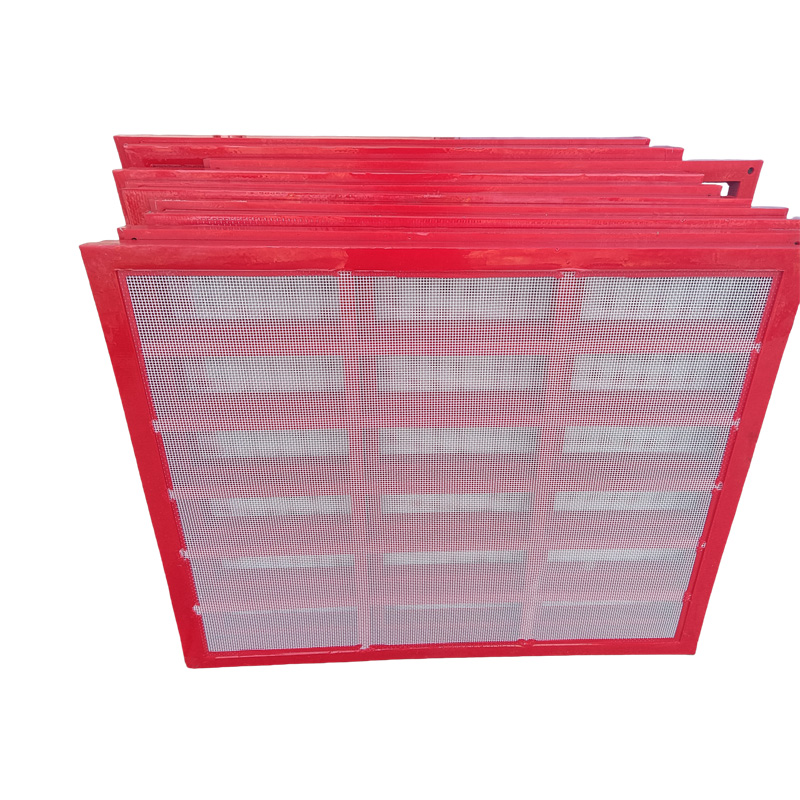

Polyurethane (PU) screen mesh, also called PU sieve mesh, is a high-performance screening solution engineered from abrasion-resistant polyurethane elastomer Designed to replace traditional metal wire mesh and rubber screens, it delivers exceptional durability, high screening efficiency, and anti-clogging performance for heavy-duty wet/dry screening across mining, coal, metallurgy, aggregate, and recycling industries. |  |
Parameter | Specification |
Material | Polyester/polyether PU elastomer + steel cable/rebar reinforcement |
Hardness | Shore A 55–90 (customizable: 65/75/80/85/90) |
Aperture Range | 0.075mm–150mm (square/slotted/rectangular) |
Open Area | 20%–45% |
Standard Size | 1045×700mm, 1245×700mm, 305×610mm (modular); max. 1500×3000mm |
Thickness | 20–60mm |
Tensile Strength | ≥35MPa (PU matrix); ≥50kN/m² (reinforced) |
Elongation at Break | ≥350% |
Operating Temperature | -40°C to +80°C |
Color | Orange (standard), red, black, custom colors |
Certification | GB/T 15382-2021, ISO 4649 |
· Superior Wear Resistance: Wear resistance coefficient 3–5× higher than rubber and far exceeding manganese steel; service life reaches 6–12 months (3–10× longer than metal screens), cutting downtime and maintenance costs.
· High Open Area & Efficiency: Open area up to 28%–45% (vs. 25%–30% for metal mesh); trapezoidal aperture design prevents clogging, boosting screening efficiency by 20%–30% for wet/sticky materials.
· Excellent Elasticity & Impact Resistance: High elasticity absorbs material impact, reducing noise and blinding; withstands high-frequency vibration without deformation.
· Customizable Specifications: Aperture, size, hardness, and color tailored to your application; easy installation with hook-edge or modular design.
· Corrosion & Moisture Resistant: Resists water, oil, and chemical corrosion; ideal for wet screening (e.g., sand washing, dewatering).
· Mining: Iron ore, copper, gold, and bauxite screening; fine grading & dewatering.
· Coal Industry: Raw coal, clean coal, and gangue screening; high-frequency fine screening.
· Aggregate & Quarry: Sand, gravel, and stone classification; wet screening & washing.
· Metallurgy: Sinter, pellet, and ore sizing; high-temperature material screening.
· Recycling: Construction waste, plastic, and metal scrap sorting.
· Others: Silica sand, fertilizer, and food processing (food-grade PU available).
· Premium Raw Materials: Imported PU elastomer (polyester/polyether) with strict quality control.
· Advanced Production: Compression molding + high-strength steel reinforcement for consistent quality.
· Strict Quality Testing: Each batch tested for hardness, tensile strength, and abrasion resistance per ISO/GB standards.
· Global Supply: Exported to 30+ countries; reliable delivery & after-sales support.
· Competitive Pricing: Factory direct sales with OEM/ODM services.
The foundation of our screening media lies in its sophisticated composite architecture. We utilize top-tier polyester and polyether polyurethane elastomers, renowned for their exceptional dynamic load-bearing capabilities and resilience.
Internal Reinforcement: Embedded with high-tensile steel cables or rebar, providing a rigid internal skeleton that outright prevents stretching or sagging under heavy material loads.
Elastomeric Flexibility: The outer polyurethane layer offers the necessary rebound elasticity to handle continuous high-frequency vibrations without tearing or delaminating.
Synergistic Performance: This dual-material approach ensures the mesh remains dimensionally stable while offering a highly forgiving surface that resists the cutting action of sharp, jagged rocks.
Frequent equipment downtime for screen replacement represents a massive hidden cost in processing operations. Our polyurethane panels are engineered to drastically extend maintenance intervals and lower overall consumable expenses.
Superior Abrasion Defense: The wear coefficient of our specific PU formulation is three to five times higher than conventional rubber, effortlessly resisting the grinding action of abrasive ores.
Extended Lifespan: Operating reliably for 6 to 12 months in punishing conditions, these panels outlast traditional manganese steel screens by an impressive three to ten times.
Cost Efficiency: By minimizing the frequency of replacements, facilities can maintain continuous, uninterrupted production schedules, thereby maximizing operational profitability.
Achieving precise material separation is critical for end-product quality. This polyurethane mesh is meticulously designed to maximize open area while overcoming the persistent, frustrating issue of material blinding.
Optimized Open Area: Featuring a generous open area ranging from 20% to 45%, facilitating rapid material passage and high-volume processing capabilities.
Trapezoidal Aperture Design: The unique tapered hole geometry widens downward, ensuring that near-size particles pass through freely rather than becoming wedged in the opening.
Self-Cleaning Action: The inherent high-rebound elasticity of the polyurethane creates a secondary whipping action during vibration, actively dislodging sticky, wet materials and boosting wet screening efficiency by up to 30%.
Recognizing that no two processing facilities operate under identical conditions, we offer comprehensive customization capabilities to meet exacting dimensional, environmental, and operational requirements.
Versatile Aperture Options: Ranging from ultra-fine 0.075mm slots to massive 150mm square openings, accommodating everything from fine sand washing to primary scalping operations.
Tailored Hardness: Available in Shore A 55 to 90, allowing precise matching of panel hardness to the specific impact and abrasion characteristics of your unique feed material.
Form Factor Flexibility: Whether you require standard modular panels or large-scale custom dimensions up to 1500x3000mm, we deliver exact fits for any existing deck configuration.
Transitioning to high-performance polyurethane media should not require extensive, costly equipment modifications. Our panels are designed for seamless, immediate integration into your existing screening infrastructure.
=
Lightweight Handling: Weighing significantly less than woven wire or heavy steel plates, these panels can be safely and swiftly installed by a single operator, drastically reducing labor requirements.

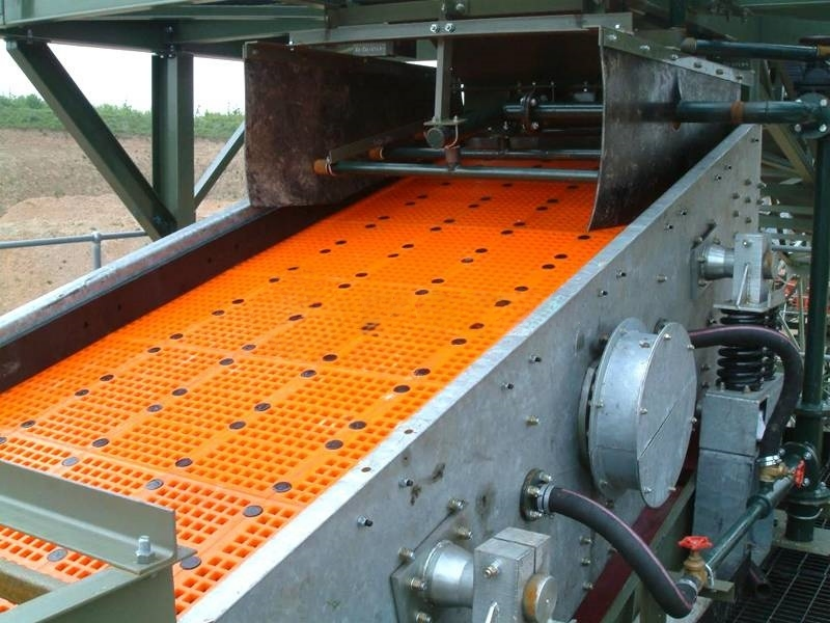

Versatile Fastening Systems: Available with modular pin-and-sleeve connections or traditional hook-edge tensioning, ensuring a secure, vibration-proof fit on virtually any machine.
Universal Compatibility: Engineered to perfectly match the deck profiles of all major vibrating screen manufacturers, facilitating a hassle-free, immediate upgrade path.
Modern industrial environments demand components that not only survive brutal conditions but also actively contribute to a safer, more compliant, and environmentally conscious workplace.
Chemical & Moisture Immunity: The premium PU matrix is highly resistant to water, oils, and processing chemicals, making it the ultimate choice for dewatering and wet classification tasks.
Acoustic Dampening: The energy-absorbing nature of polyurethane significantly mutes the deafening crash of rocks and aggregates, lowering ambient noise levels and protecting worker hearing.
Thermal Stability: Performing flawlessly in extreme climates, maintaining structural integrity and essential elasticity in temperatures ranging from -40°C all the way up to +80°C.
As a dedicated manufacturer and trusted global supplier, we are committed to elevating your processing capabilities through uncompromising quality and deep technical expertise. We do not just supply parts; we provide comprehensive wear solutions designed to transform your operational efficiency.
Advanced Manufacturing: Utilizing state-of-the-art compression molding techniques to ensure zero internal defects and perfect dimensional consistency across every single batch.
Strict Quality Assurance: Every panel undergoes rigorous factory testing for tensile strength, elongation, and abrasion resistance in strict compliance with ISO 4649 and GB/T standards.
Rapid Global Fulfillment: Streamlined production and robust logistics networks ensure that your critical wear parts arrive exactly when needed, entirely minimizing facility downtime.
Expert Engineering Support: Our technical team collaborates closely with your facility to analyze wear patterns and recommend the absolute optimal polyurethane formulation for your specific application.
Contact our sales team today to discuss your specific screening needs! We offer free samples, custom design, and fast delivery.
