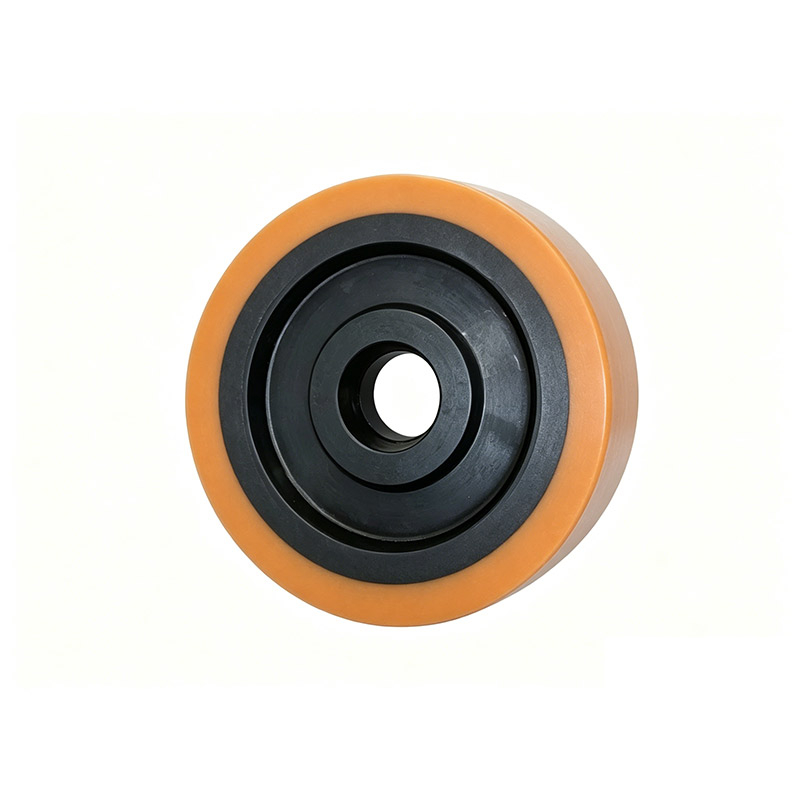

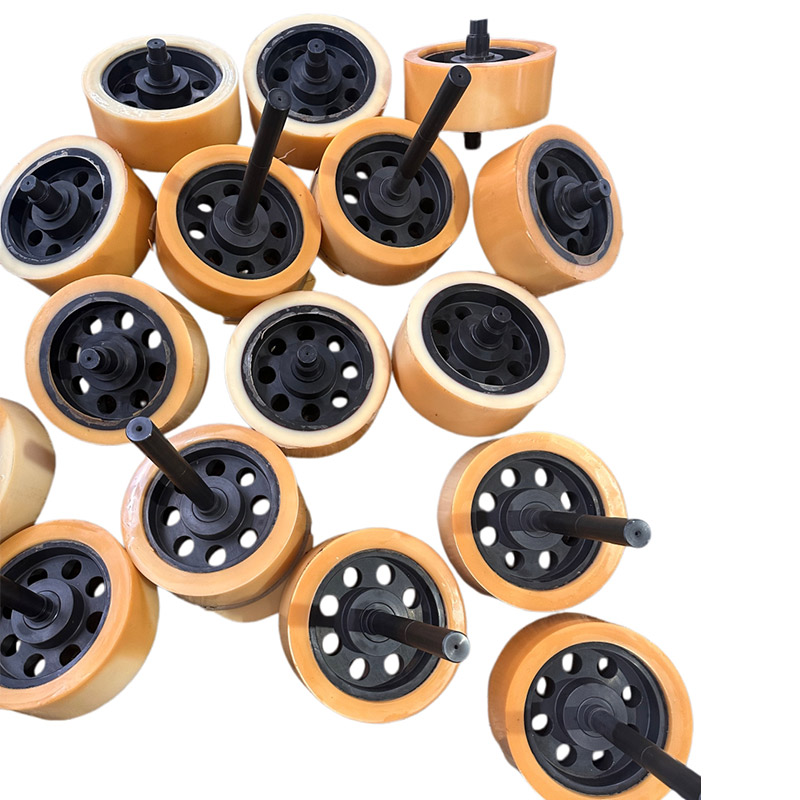

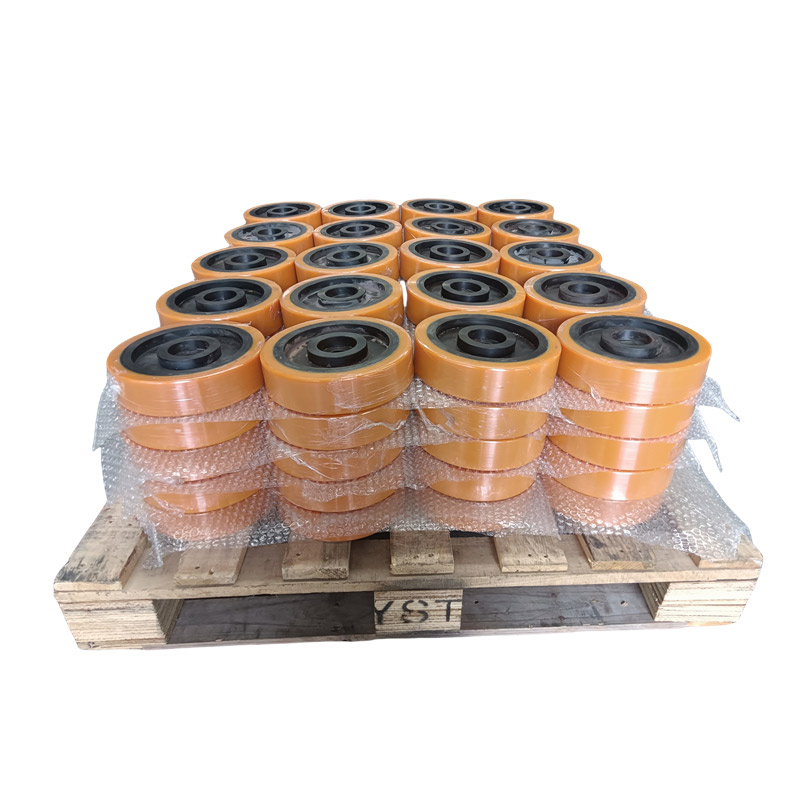

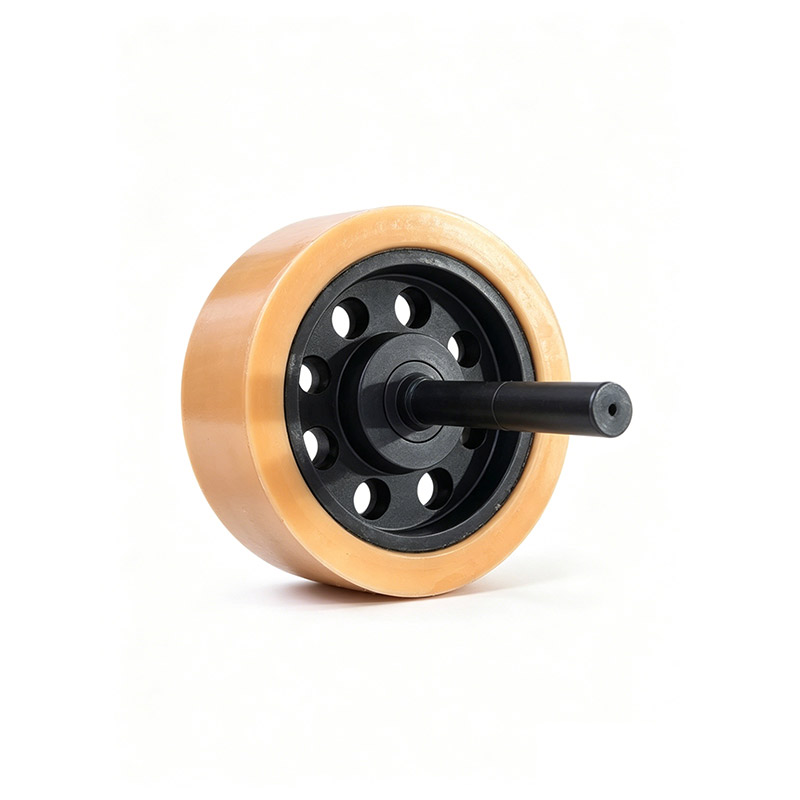

Heavy Duty Vulkollan Monorail Drive Wheels & High Grip Transport Wheels are engineered with genuine Vulkollan NDI polyurethane treads, integrally vulcanized and bonded to steel/cast iron hubs. Designed specifically for monorail cranes, overhead cranes, AGVs (Automated Guided Vehicles), heavy-duty logistics transportation, and industrial rail-mounted equipment, these wheels offer superior advantages including high load capacity, excellent grip, wear and tear resistance, low noise, oil and weather resistance, and non-delamination. Under heavy-duty working conditions, their service life is far longer than that of ordinary PU, rubber, and nylon wheels.
Core Material Technical Parameters
1. Vulkollan Polyurethane Tread Parameters
Parameter Item | Technical Index |
Material Type | Imported Vulkollan NDI Polyurethane (Not ordinary MDI Polyurethane) |
Standard Hardness | 75A / 85A / 90A / 92A / 95A (Customizable) |
Density | 1.25～1.30 g/cm³ |
Tensile Strength | ≥45 MPa |
Elongation at Break | ≥550% |
Tear Strength | ≥85 kN/m |
Rebound Rate | ≥60% |
Wear Resistance | 3～5 times higher than natural rubber, more than 2 times higher than ordinary PU |
Operating Temperature Range | Long-term: -40℃ ～ +80℃; Short-term instantaneous: +120℃ |
Chemical Resistance | Resistant to engine oil, gear oil, hydraulic oil, emulsion, acid-base and humid environments |
Anti-slip Performance | High friction coefficient, no slipping on rails, steel plates and concrete floors |
Surface Characteristics | Non-marking, no damage to rails and floors |
2. Wheel Hub Base Parameters
Parameter Item | Technical Index |
Hub Material | Gray Cast Iron HT250 / Ductile Iron QT500 / Welded Carbon Steel 45# |
Processing Precision | Inner hole H7 tolerance, end runout ≤0.15mm, radial runout ≤0.20mm |
Keyway Standard | Complies with DIN 6885 / GB 1095 Flat Key Standard |
Bonding Process | High-temperature vulcanization chemical bonding, no delamination or separation |
Structure Type | Solid hub, hub with lightening holes, double bearing position structure optional |
Specification Dimensions & Load Capacity Parameters (Full Series Detailed)
1. Standard Dimensions & Rated Load of Monorail Drive Wheels
Model Specification (Outer Diameter × Width) | Outer Diameter D (mm) | Tread Width W (mm) | Inner Hole d (mm) | Rated Static Load (kg) | Rated Dynamic Load (kg) | Adaptable Travel Speed |
150×80 | 150 | 80 | 30/35/40 | 1800 | 1000 | ≤12km/h |
200×80 | 200 | 80 | 35/40/45 | 2500 | 1500 | ≤12km/h |
250×100 | 250 | 100 | 40/45/50 | 4200 | 2700 | ≤15km/h |
300×100 | 300 | 100 | 45/50/55 | 5500 | 3500 | ≤15km/h |
350×120 | 350 | 120 | 50/55/60 | 7200 | 4800 | ≤16km/h |
400×120 | 400 | 120 | 55/60/65 | 8500 | 5800 | ≤16km/h |
500×150 | 500 | 150 | 60/70/80 | 12000 | 7500 | ≤15km/h |
600×200 | 600 | 200 | 70/80/90 | 15000 | 9200 | ≤12km/h |
2. General Parameters of High Grip Transport Wheels
• Outer Diameter Range: 100mm～600mm (Non-standard customization available)
• Tread Width Range: 50mm～200mm
• Inner Hole Specification: 20～90mm, can be processed into round holes, keyways, and set screws
• Standard Hardness: 92A (High anti-slip type); 85A (Shock absorption and mute type); 95A (Ultra-high wear-resistant and heavy-duty type)
• Travel Speed: Regular ≤16km/h, can operate continuously for a long time under low-speed and heavy-load conditions
• Climbing Capacity: Adaptable to monorail inclination angle ≤30°, no slipping or sliding
Mechanical Performance Parameters
1. Rolling Resistance: 25%～35% lower than rubber wheels, energy-saving and power-saving, with smaller driving load
2. Shock Absorption and Noise Reduction: Operating noise ≤65dB, buffering and shock absorption, reducing impact wear of equipment and rails
3. Impact Resistance: Can withstand instantaneous impact load of 1.5 times the rated dynamic load, not easy to edge chipping or cracking
4. Wear Life: Can be used for 2～5 years under continuous working conditions, no frequent replacement and maintenance required
5. Operating Mode: Supports continuous operation, intermittent operation, and high-frequency start-stop working conditions
Adaptable Working Conditions & Installation Parameters
• Adaptable Rails: I-beam monorail, H-beam rail, flat steel rail, concrete flat ground
• Bearing Configuration: Pre-installable double-sealed deep groove ball bearings / self-aligning roller bearings, dust-proof and waterproof
• Installation Methods: Three options available: interference fit, keyway transmission, and set screw fixation
• Customization Service: Can modify outer diameter, width, inner hole, hardness, hub structure, and color
Application Scenarios
Monorail overhead cranes, bridge cranes, automated warehouse stackers, AGV automated guided vehicles, heavy-duty logistics trolleys, port terminal transfer equipment, mining conveyor machinery, and heavy-duty assembly line conveyor systems in workshops.
