Attribute | Value |
Material | Polyurethane |
Colour | Any colour |
Hardness | 75-90A Shore |
Product Nam | Pu Mecanum Wheels |
Transport Pac | Be Packed in Export-Applicable Tray |
HS CORD | 3926909090 |
Apply | Trucks/Machinery |
Production C | 3000 Piece/Pieces Per Month |
Heavy Duty PU Mecanum Wheels Polyurethane Coating Wheels Anti Oil And Corrosion
Heavy Duty Industrial Mecanum Wheels-Omni Wheels

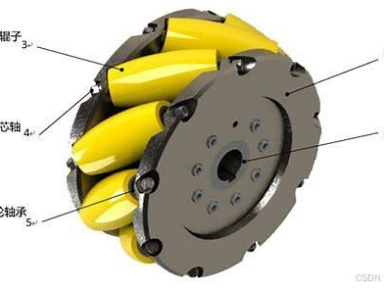

Multi-directional wheels also known as Mecanum Wheels and Omni Wheels, wheel works by having the main wheel on an axle (allowing forward and backward motion).The 360°movement is achieved through the external rollers which provide muti-
directional movement without any load shifting and unintentional directional change.
Normal,the all-direction vehicle is equipped with four mecanurn wheels.it is flexible for moving in any direction while keeping itself in a constant direction.
· A set of mecanum wheels including 4 pieces of PU wheels.
· 1 pieces of wheels is combinations from 8 pcs polyurethane wheels.
· Industrial Automation: AGVs/AMRs, automotive assembly, aerospace manufacturing, heavy-load material handling.
· Logistics & Warehousing: Narrow-aisle transport, pallet moving, high-density storage operations.
· Robotics: Service robots, inspection robots, competition robots (e.g., RoboCup).
· Healthcare: Mobile surgical platforms, patient transfer equipment.
· Special Scenarios: Military reconnaissance, stage moving platforms, spacecraft docking simulators.
2. Technical Features· Omnidirectional Motion: 3-DOF movement (X/Y/rotation) without steering mechanisms; zero-turn radius. · 45° Roller Geometry: Peripheral passive rollers at 45° to the wheel axis, enabling force vector decomposition. · Independent Drive: Four wheels with individual motors; motion via vector summation of wheel forces. · High Maneuverability: Lateral shift, diagonal movement, and in-place rotation for tight spaces. · Precision Control: Enables millimeter-level positioning for accurate assembly and handling. · Floor Dependency: Optimal on hard, flat surfaces; lower efficiency on rough terrain. |  |
Parameter | Specification |
Motion Mode | Omnidirectional (X, Y, Rotation) |
Turning Radius | Zero-turn radius |
Roller Angle | 45° to wheel axis |
Drive Configuration | 4-wheel independent drive |
Working Surface | Flat & hard ground |
Positioning Accuracy | Millimeter-level |
Core Advantage | High flexibility & compact space movement |
 | Feature of Robot Omin Wheels · 360°movement · Polyurethane rollers for excellent durability · excellent wear resistance and shock absorbing · High impact resistance and load capacity · Easy installation and integration with existing conveyor systems |
