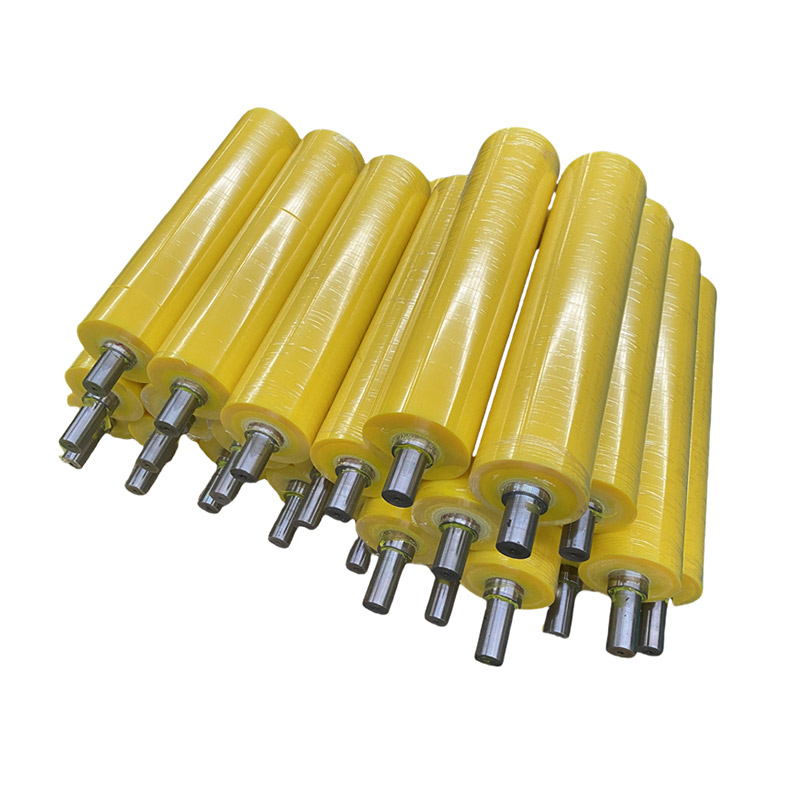

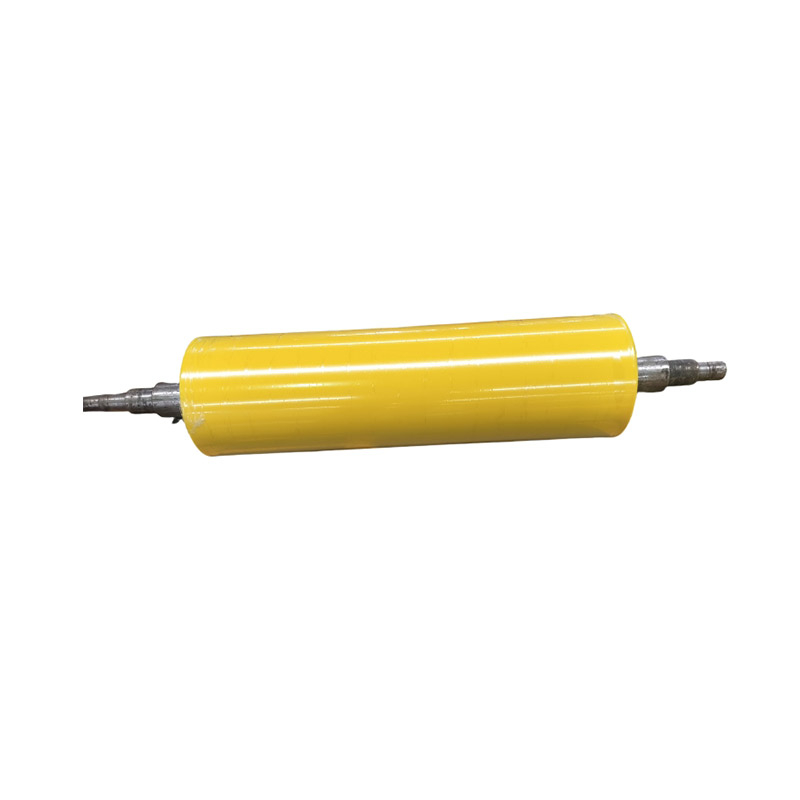

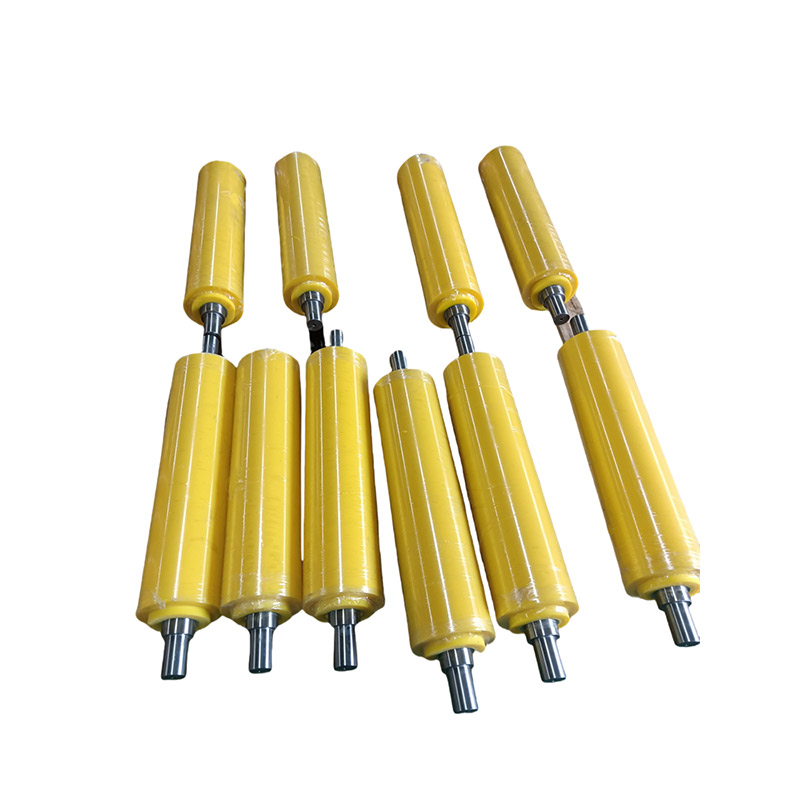

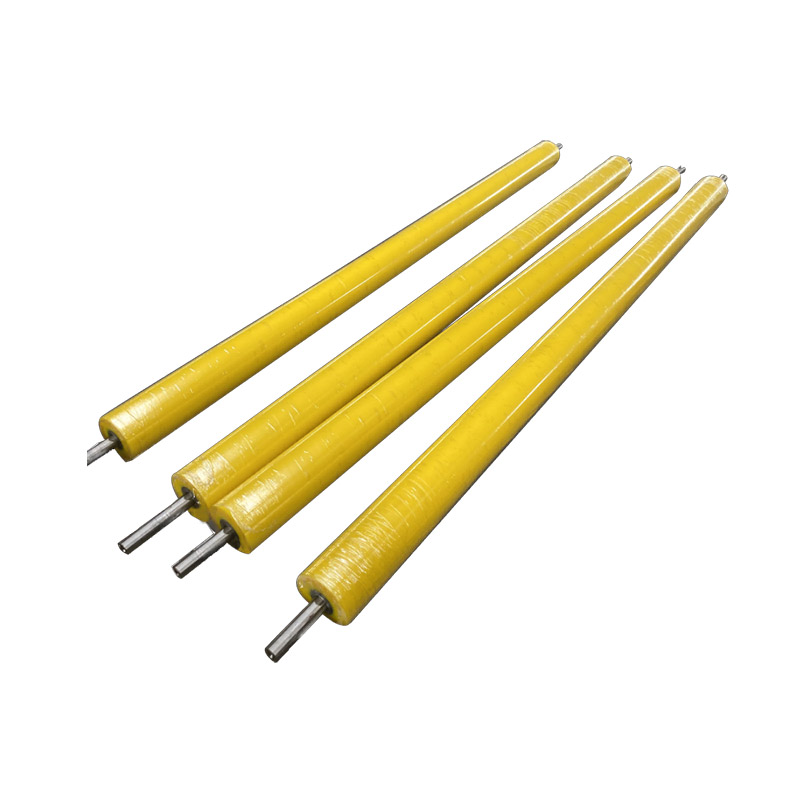

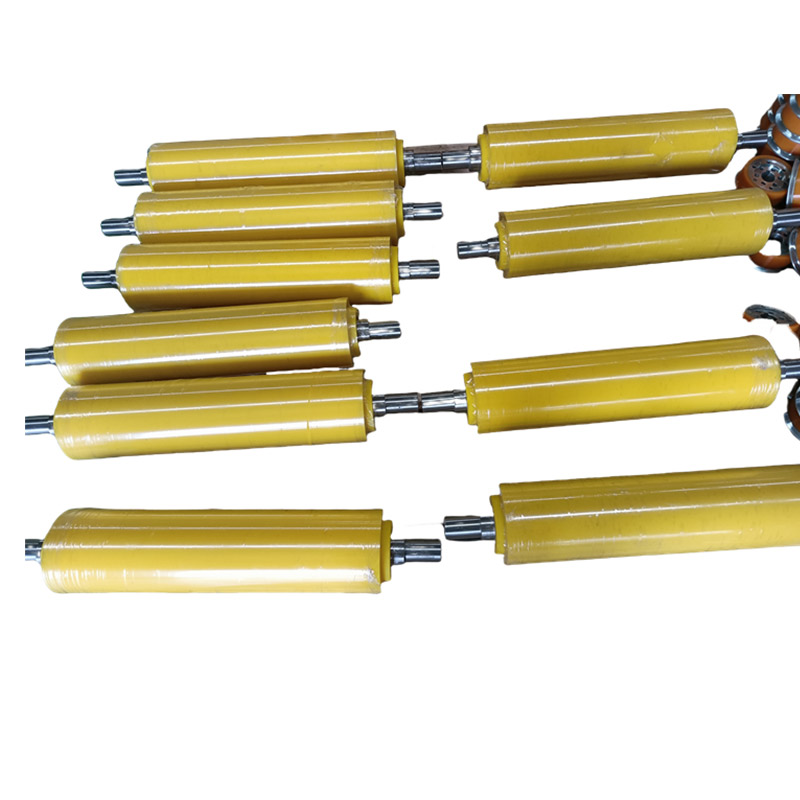

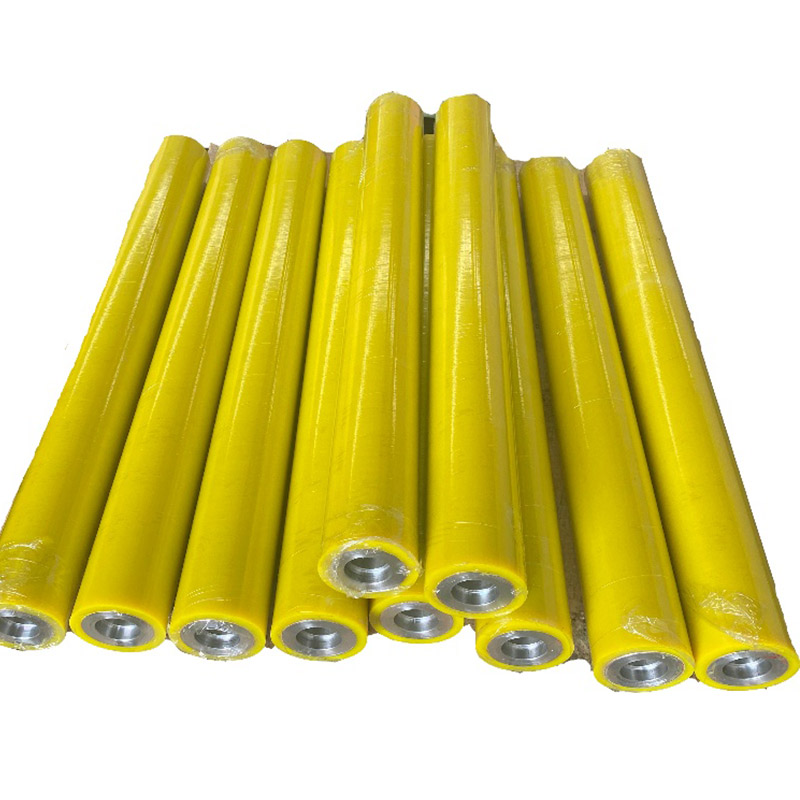

Custom Polyurethane (PU) Feed Rollers are precision-engineered core components exclusively optimized for the printing and packaging industry. Designed to solve common industry pain points including roller wear, paper slipping, ink corrosion, material scratching and unstable high-speed feeding, our custom PU feed rollers deliver consistent, high-precision material conveying performance for offset printing, flexographic printing, gravure printing, carton packaging, film laminating and paper slitting equipment.
Adopting high-purity cast polyurethane elastomer material, our feed rollers feature outstanding abrasion resistance, chemical stability and anti-slip performance. Compared with traditional rubber rollers, the service life is extended by up to 5 times, with lower maintenance frequency and higher production continuity. All rollers support full custom sizing, hardness adjustment and surface treatment, perfectly matching different models and working conditions of printing and packaging machinery.
Core Features & Performance Advantages
• Superior Wear & Tear Resistance: Premium cast PU formula ensures long-term stable operation under high-speed continuous feeding. It effectively resists friction wear from paper, plastic films and packaging materials, avoiding diameter deviation and feeding errors caused by roller wear, greatly reducing replacement and maintenance costs.
• Excellent Ink & Solvent Resistance: Special industrial-grade PU material formula resists corrosion from printing inks, diluents, cleaning agents and other chemical solvents. No swelling, cracking or deformation after long-term contact, maintaining stable surface performance in complex printing production environments.
• Precision Anti-slip Feeding & No Material Damage: Customizable surface finish (smooth, matte, textured) and moderate friction coefficient ensure zero slipping during high-speed conveying of thin paper, coated paper, plastic films, carton boards and other materials. The soft and tough PU surface avoids scratching, crushing or wrinkling packaging and printing materials, improving finished product yield.
• High Precision & Low Runout: Strict precision machining process controls roller runout tolerance within 0.05mm, ensuring uniform feeding speed and stable material tension. Effectively solves printing overprint deviation, packaging material dislocation and other problems caused by unstable roller operation, suitable for high-precision printing and high-speed packaging production lines.
• Low Noise & Stable Operation: Optimized roller body structure and material elasticity reduce vibration and friction noise during operation. The running noise is lower than 45dB at conventional operating speed, meeting the noise reduction requirements of modern automated production workshops.
• Full Customization Compatibility: Support customized size, hardness, shaft type, surface technology and core material, compatible with all mainstream printing and packaging equipment brands, realizing one-stop personalized matching solutions.
Technical Parameters
We provide fully customized technical specifications according to customer equipment parameters and production working conditions. The standard configurable parameters are as follows:
Parameter Item | Standard Custom Range | Description & Application Recommendation |
PU Material Hardness | Shore 20A – 75D (Customizable) | 30A-60A for thin paper/film soft feeding; 60A-90A for conventional printing/packaging; 70D+ for heavy-duty cardboard high-load feeding |
Roller Outer Diameter | Φ20mm – Φ300mm | Support non-standard special diameter customization, strict tolerance control ±0.02mm |
Effective Length | 50mm – 2000mm | Integrated molding or seamless splicing for ultra-long rollers, no bending deformation |
Core Shaft Material | Carbon Steel / Galvanized Steel / SS304 / Aluminum Alloy | High-rigidity core shaft ensures no deflection during high-speed operation; stainless steel for humid and anti-rust working conditions |
Runout Tolerance | ≤0.05mm (High-speed type); ≤0.1mm (Standard type) | Meet high-precision overprinting and fast feeding requirements of printing production lines |
Surface Treatment | Smooth / Matte / Textured / Patterned / Mirror Polished | Matte/textured for enhanced anti-slip; smooth/mirror for scratch-free thin material feeding |
Shaft Hole Type | Through Hole / Step Hole / Keyway / Spline Shaft / Custom Boss | Fully compatible with various equipment installation and transmission structures |
Operating Temperature Range | -20℃ to +80℃ | No softening, hardening or performance attenuation in conventional printing and packaging production environment |
Max Operating Speed | Up to 80m/min | Stable feeding without slipping or vibration for high-speed automated production lines |
Certification Standard | RoHS / REACH Compliance | Meet EU environmental protection standards, suitable for global export equipment and production |
Service Life | 3-5 times longer than ordinary rubber rollers | Greatly reduce downtime and replacement costs, improve production efficiency |
Wide Applications
Our custom polyurethane feed rollers are widely used in all kinds of printing and packaging automation equipment, covering the whole industry chain:
• Printing Equipment: Offset printing machine, flexographic printing machine, gravure printing machine, digital printing machine, label printing machine
• Packaging Equipment: Carton forming machine, laminating machine, slitting machine, rewinding machine, bag making machine, blister packaging machine
• Material Processing: Paper feeding, film conveying, label transmission, cardboard feeding and other material handling links
Custom Service Process
We provide one-stop customized PU feed roller solutions to meet personalized equipment and production needs:
1. Demand Confirmation: Collect equipment model, roller size, feeding material, operating speed, working temperature and hardness requirements
2. Scheme Design: Professional technical team optimizes PU formula, surface process and structural parameters according to working conditions
3. Precision Production: Adopt integral casting, high-precision turning and surface finishing process to ensure product accuracy
4. Quality Inspection: Strictly test hardness, dimensional tolerance, runout and surface quality, provide test reports
5. Fast Delivery & After-sales: Short production cycle, complete after-sales service, support sample customization and batch production
1. Why choose PU feed rollers instead of traditional rubber rollers?
Polyurethane material has better abrasion resistance, ink and solvent corrosion resistance, and higher dimensional stability. It is not easy to deform and age, with a service life 3-5 times that of ordinary rubber rollers. It can effectively reduce production failures and maintenance costs.
2. Can you customize non-standard size and special hardness rollers?
Yes. We support full personalized customization of size, hardness, surface texture and shaft structure, and can design and produce according to customers’ original roller drawings or on-site working conditions.
3. Are your PU rollers environmentally friendly and compliant?
All our polyurethane feed rollers adopt environmentally friendly formulas, fully comply with RoHS and REACH environmental protection standards, and can be used for export equipment and food packaging material production scenarios.
